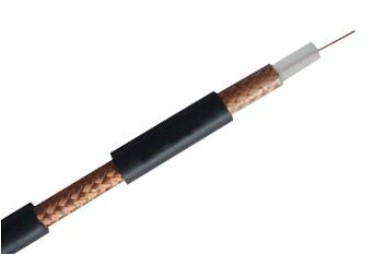

· Materials: foamed PE + A/P (bonded) , 60% AL braiding and 6.1mm PVC
· BC or CCS: 0.81 + 3.66mm
· Customized specifications are accepted
· Center conductor: tinned, bare and copper clad steel available
· Braiding wire: bare and tinned copper
· Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15 and 0.16mm
· Braiding net: 32, 48, 64, 72, 80, 96, 120, 128 and 144
· Braiding coverage: between 30 to 97% available
· PVC jacket of flame retardant
· UV or UL is available
· Impedance: 75 ±3 ohms
· Velocity of propagation: 85%
· Capacitance: 52pF/m
· Return loss: 20dB/minute
· Attenuation: 68°F or 20°C) dB/100 meters:
o 5MHz: 2.81dB
o 55MHz: 6.72dB
o 187MHz: 11.80dB
o 250MHz: 13.43dB
o 350MHz: 15.72dB
o 400MHz: 16.71dB
o 500MHz: 18.6dB
o 550MHz: 19.48dB
o 600MHz: 20.31dB
o 750MHz: 22.84dB
o 865MHz: 24.65dB
o 1000MHz: 26.61dB
· Customized packing types are accepted
· Packing:
o Length: 100, 200, 305m/roll or 100, 200 or 300yard/roll
o Inner: wooden, plastic and paper reel
o Outer: carton and pull out box pallet
