Cat6A Pre-terminated Bundle Patch Cable

Category：COPPER PATCH CORD

1. Product Overview

This Cat6A pre-terminated Bundle Patch cable is specially designed for high-density cabling projects in data centers and computer rooms. It adopts original high-performance Cat.6A shielded cables and RJ45 connectors, pre-terminated and molded at the factory. It supports 10Gbps network transmission, enabling plug-and-play deployment and significantly reducing on-site construction difficulty. It is an efficient solution for large-scale network cabling.

2. Core Specifications and Performance

  1. Transmission Performance
    • Standards: Fully compliant with ANSI/TIA 568.2-D Cat.6A and ISO/IEC 11801 2nd Class EA international cabling standards.
    • Bandwidth: Supports bandwidth up to 500MHz, stably carrying 10Gbps Ethernet transmission to meet the needs of 10Gbps network applications.
    • Conductor: Made of high-purity oxygen-free copper (typically 23AWG), with precise twisting technology to reduce signal attenuation and crosstalk.
  2. Shielding Design
    • Structure: Features U/FTP (individual pair foil shield) or S/FTP (overall braided + individual pair foil double shield) structure, paired with die-cast shielded RJ45 connectors, effectively suppressing electromagnetic interference (EMI) and alien crosstalk (AXT), ensuring stable signal transmission in complex electromagnetic environments.
    • Connectors: Metal-shell shielded RJ45 plugs with gold-plated contacts, anti-oxidation and anti-plug wear, improving long-term electrical performance and service life.
  3. Cable and Jacket
    • Outer Jacket: Made of low-smoke zero-halogen (LSZH) or flame-retardant PVC material (optional), with a turquoise appearance. It is wear-resistant, tensile-resistant and anti-aging, meeting the mechanical performance and fire safety requirements of engineering cabling.

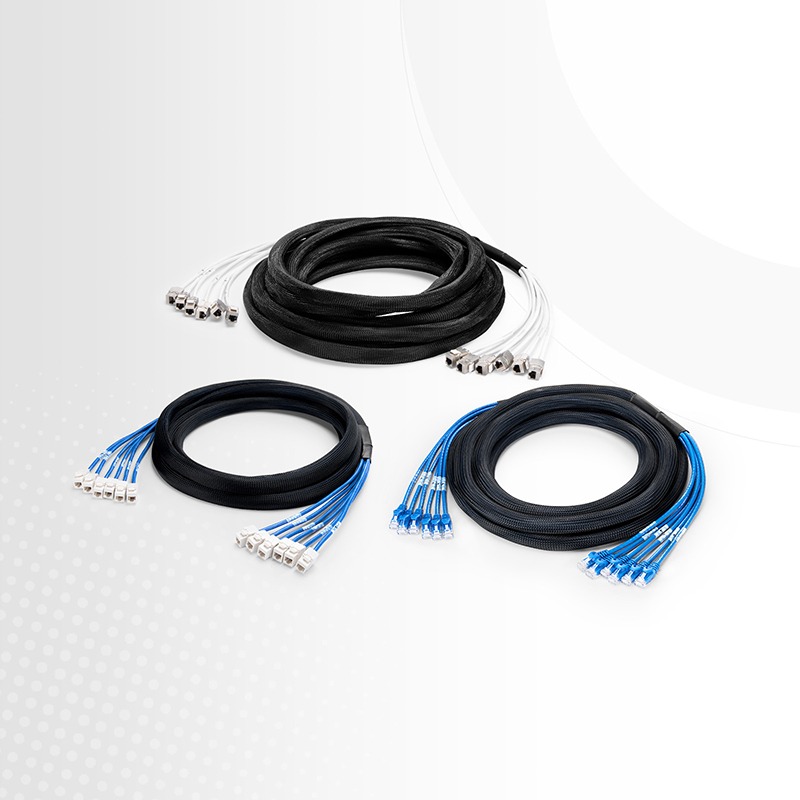

    • Bundled Design: Multi-link combined cables (e.g., 6-core/12-core), equipped with cable mesh sleeves and fixing parts, neatly organized for easy cable management in cabinets and reduced cable clutter.

3. Product Features

  • Factory Pre-terminated, No On-site Crimping Required: Both ends of the RJ45 connectors are terminated at the factory and 100% electrically tested. No professional tools or construction experience are required on-site; simply plug into the device to use, greatly shortening the cabling period.
  • Strong Anti-interference, High Stability: Full-link shielding design resists electromagnetic interference from high-power equipment, switches, etc., in the computer room, reducing the risk of packet loss and lag, and ensuring stable transmission of key business data.
  • Industrial-grade Durable Design: The cable has excellent flexibility, and the connectors adopt reinforced strain relief design, anti-bending and anti-pulling, adapting to complex routing environments in cabinets and not easily damaged during long-term use.
  • Cable Management Friendly, Easy Maintenance: Multi-core bundled design with identification solutions, neatly arranged cables for easy troubleshooting and maintenance in the later stage, improving the overall aesthetics and manageability of computer room cabling.

4. Typical Application Scenarios

  • Backbone cabling between switches and patch panels in data centers and enterprise computer rooms
  • 10Gbps local area network and high-speed network system construction
  • Large-scale structured cabling projects such as office buildings and campus networks
  • Network connections in industrial environments and scenarios with strong electromagnetic interference
