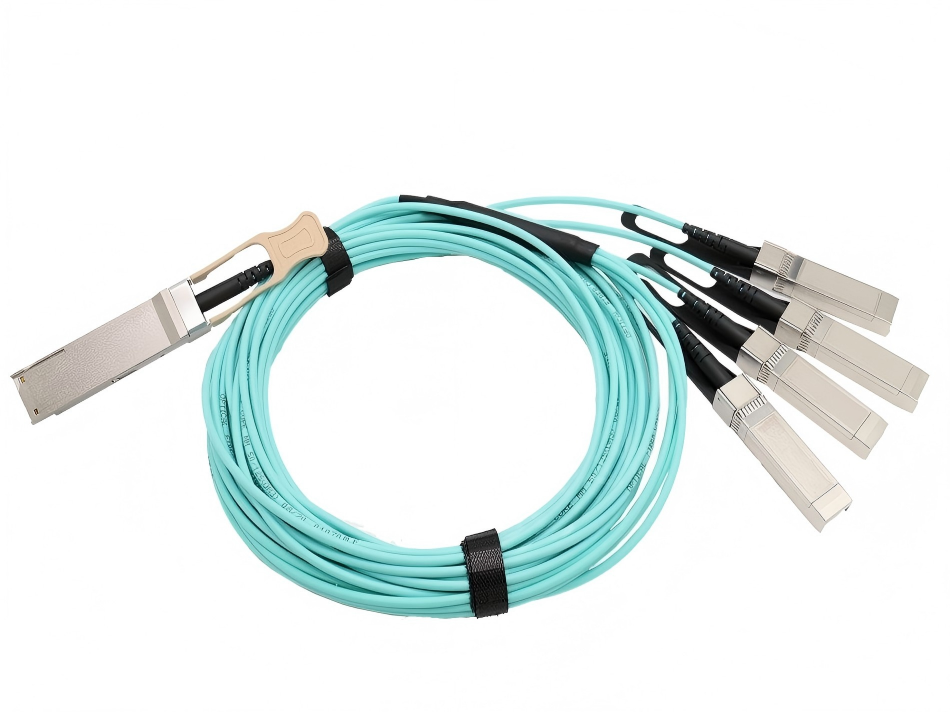

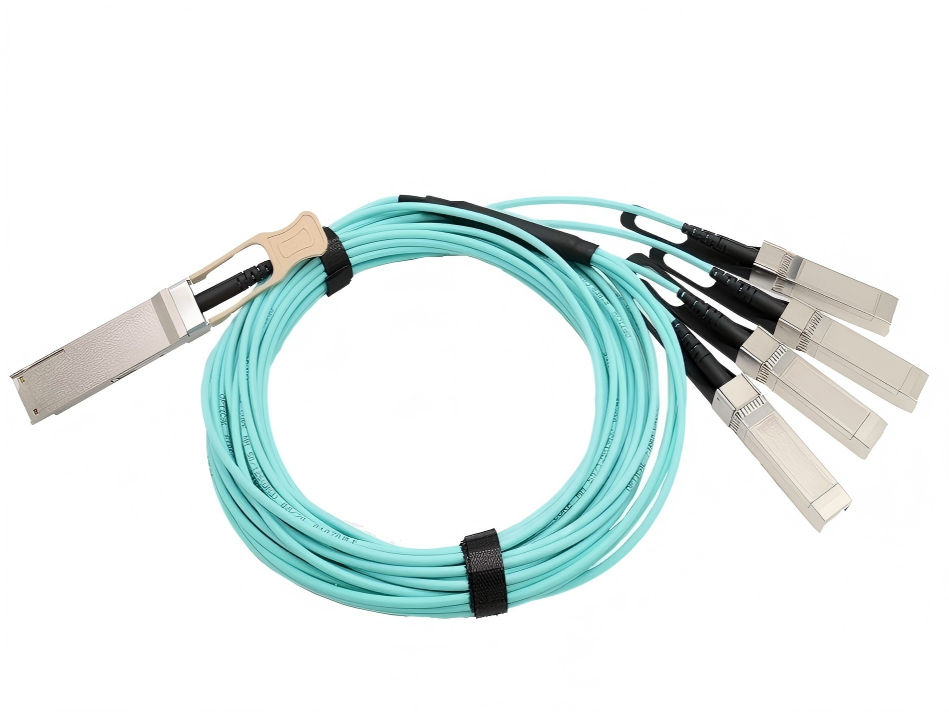

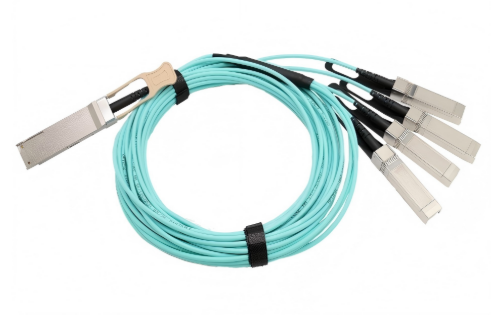

QSFP28 to 4x SFP28 AOC – 100G Active Optical Cable
The QSFP28-4SFP28-AOC-100G is an active optical cable that supports 100Gbps data rate links up to 100m over OM3/OM4 fiber, with a hot-pluggable electrical interface. This AOC integrates four data lanes and four transmit lanes — each operating at 25Gbps — for a total bandwidth of 100Gbps.
The QSFP28 to 4x SFP28 AOC is a 100GBase QSFP28 hybrid cable, featuring a QSFP28 optical connector on one end and four SFP28 optical connectors on the other, supporting transmission distances up to 150 meters. It is a high-performance module designed for short-range multi-lane data communication and interconnect applications.
Product Features:
• OM3/OM4 MMF optical cable
• Full-duplex 4-channel 850nm parallel active optical cable
• Data rate up to 25Gbit/s per channel
• SFF-8432 & SFF-8665 compliant QSFP+ housing with hot-pluggable electrical interface
• Management interface and digital diagnostic monitoring (DDM) via I2C
• 4-channel 850nm 25G VCSEL array
• 4-channel 25G PIN photodetector array
• Serial ID functionality via EEPROM
• Operating temperature: 0°C to 70°C
• 3.3V power supply voltage
• RoHS compliant
Applications:
• Switches / Routers / HBA / SAN / NIC cards
• Servers and storage equipment
• Data center networks
• High-performance computing (HPC)
• Fibre Channel
• InfiniBand FDR/EDR
