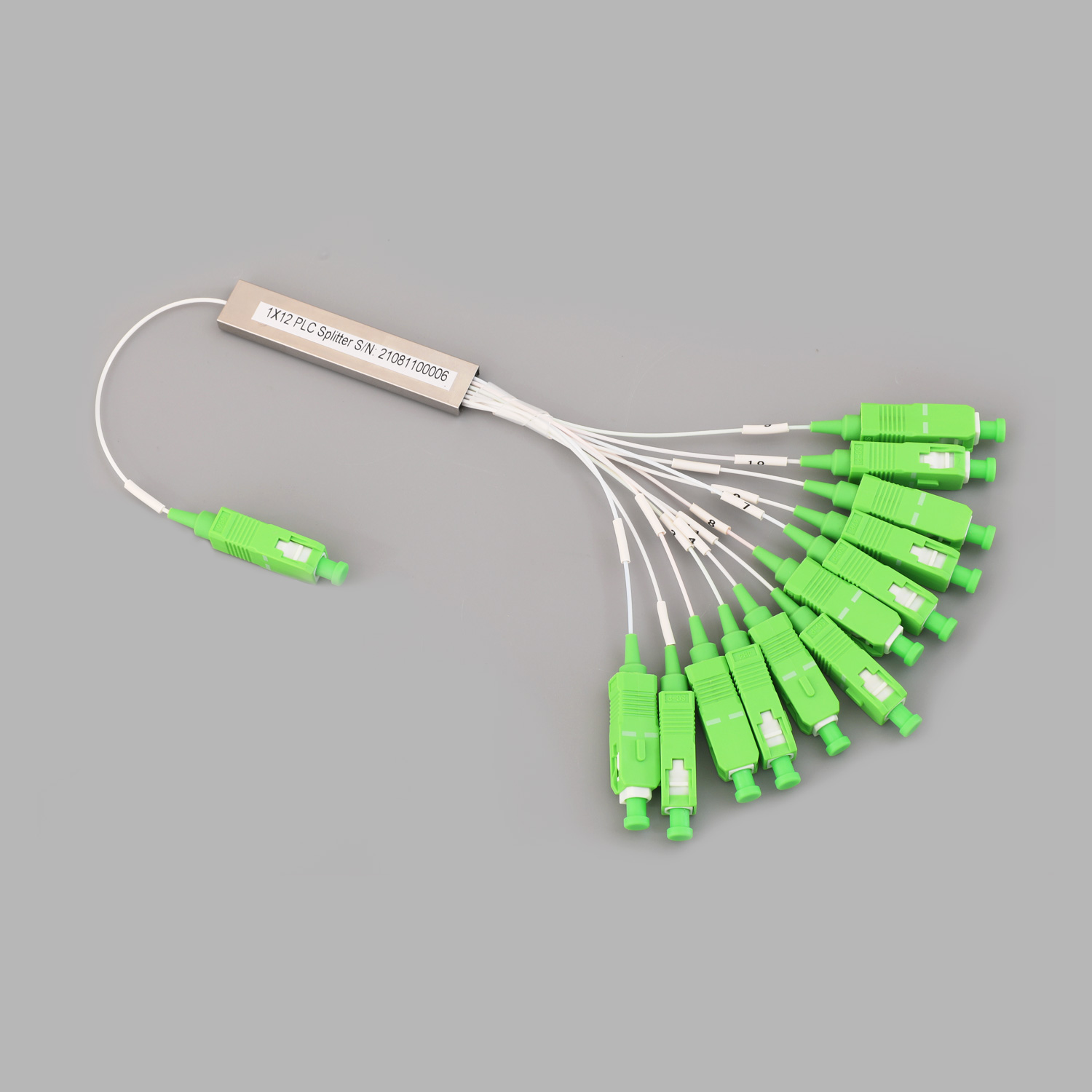

1x12 PLC Fiber Splitter, Mini Module, 900μm, SC/APC, Single-Mode
A Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology, designed to distribute optical signals from a Central Office (CO) to multiple end-user locations. PLC splitters are widely used in PON (Passive Optical Networks), Datacom, LAN (Local Area Networks), CATV (Cable TV), LCP (Local Convergence Points), FTTx, and other applications. They are suitable for environments with high-quality network requirements such as telecommunications, medical facilities, banking institutions, residential buildings, office complexes, and commercial spaces. Blockless PLC splitters are primarily deployed in outdoor fiber distribution boxes or network cabinets to enhance the utilization of client ports.
Product Features：
●Evenly splits the input signal into 12 output ports●Low insertion loss ≤12.5 dB and low polarization-dependent loss ≤0.4 dB
●Fully passive optical branching device
●Wide operating wavelength range: 1260-1650 nm
●G.657A1 bend-insensitive fiber for low bending loss
●Commonly used in PON, data communications, LAN, CATV, LCP, FTTx, and other applications
Specification:
Packaging Type: Miniature
Configuration: 1x12
Fiber Type: G.657A1
Fiber Mode: Single-Mode
Connector Type: SC/APC
Splitting Ratio: 50/50
Fiber Diameter: 900μm
Pigtail Length: 1.5m
Insertion Loss: ≤12.5dB
Return Loss: ≥55dB
Uniformity: ≤1.2dB
Directivity: ≥55dB
Polarization Dependent Loss (PDL): ≤0.4dB
Temperature Dependent Loss (TDL): ≤0.5dB
Wavelength Dependent Loss (WDL): ≤0.3dB
Operating Wavelength: 1260-1650nm
Operating Temperature: -40 to +85°C
Storage Temperature: -40 to +85°C
Steel Tube Dimensions (H×W×D): 60×12×4mm
