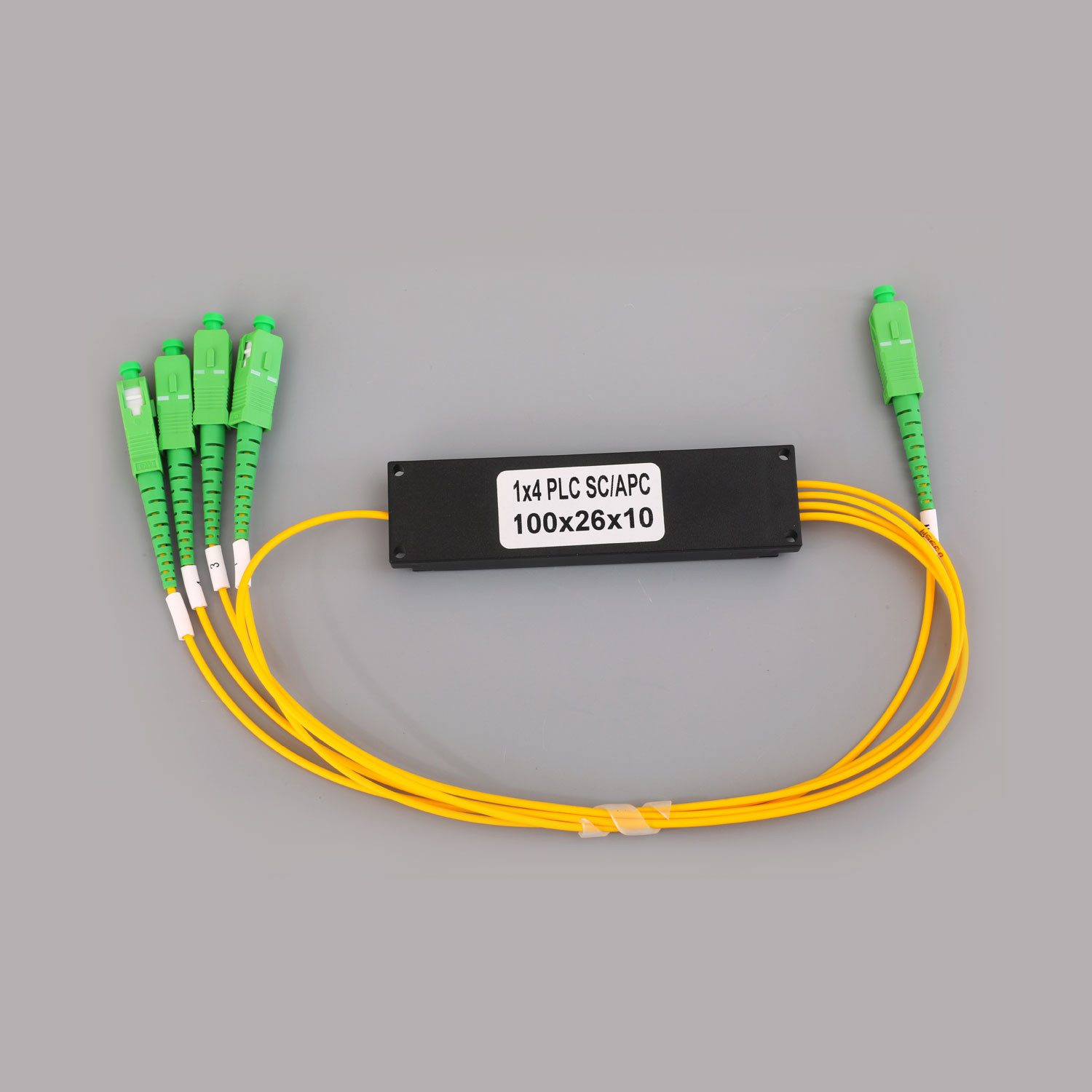

1x4 Blockless Fiber PLC Splitter, Single-Mode, 900μm Fiber, SC/APC Connector
A Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology, designed to distribute optical signals from a Central Office (CO) to multiple end-user locations. It evenly splits a single input signal in the 1260-1650nm range into four output signals and is equipped with SC/APC connectors. These highly stable components deliver excellent performance across temperature and wavelength ranges, featuring low insertion loss, low polarization-dependent loss, excellent uniformity, and low return loss in the 4-port configuration.
Blockless PLC splitters provide superior fiber protection compared to bare fiber splitters, resulting from the miniaturization of cassette-type splitters. They are primarily used in various connection and distribution boxes or network cabinets, commonly applied in POL, data communications, LAN, CATV, FTTx, and other applications.
Product Features
●Splits signals from 1260nm to 1650nm with a 25:25:25:25 coupling ratio●Low insertion loss ≤7.4 dB and low polarization-dependent loss ≤0.2 dB
●Compact housing compatible with racks, wall-mounted boxes, fiber distribution boxes, etc.
●G.657A1 bend-insensitive fiber for low bending loss
●Customizable housing, splitting ratio, and connector options
Specification:
Packaging Type: Miniature
Configuration: 1x4
Fiber Type: G.657A1
Operating Wavelength: 1260 ~ 1650 nm
Connector Type: SC/APC
Splitting Ratio: 50/50
Input/Output Fiber Diameter: 900 μm
Input/Output Fiber Length: 1.5 m
Insertion Loss: ≤ 7.4 dB
Insertion Loss Uniformity: ≤ 0.6 dB
Return Loss: ≥ 55 dB
Directivity: ≥ 55 dB
Polarization Dependent Loss (PDL): ≤ 0.2 dB
Temperature Dependent Loss (TDL): ≤ 0.5 dB
Wavelength Dependent Loss (WDL): ≤ 0.3 dB
Fiber Mode: Single-Mode
Steel Tube Dimensions (H×W×D): 0.16" × 1.97" × 0.28" (4 × 50 × 7 mm)
Temperature Range:
Operating: -40 ~ +85 °C (-40 ~ 185 °F)
Storage: -40 ~ +85 °C (-40 ~ 185 °F)
