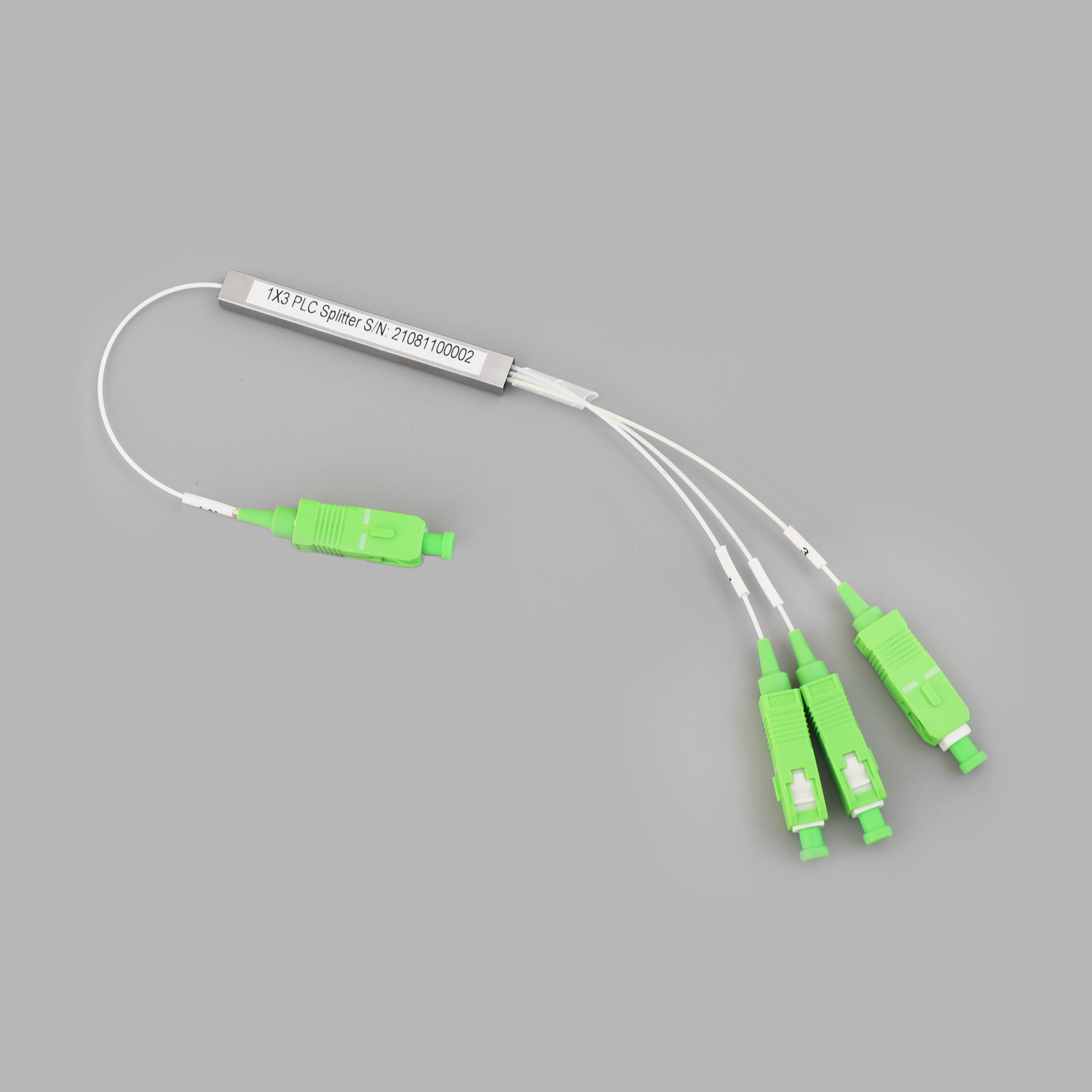

1x3 Blockless Fiber PLC Splitter, Single-Mode, 900μm Fiber, SC/APC Connector
A Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology, distributing optical signals from a Central Office (CO) to multiple premises. Blockless PLC splitters provide superior fiber protection compared to bare fiber splitters, resulting from the miniaturization of cassette-type splitters. They are primarily designed for use in various connection distribution boxes or network cabinets.
Product Features:
●Evenly splits the input signal into 3 output ports●Low insertion loss ≤6.0 dB and low polarization-dependent loss ≤0.2 dB
●Fully passive optical branching device
●Wide operating wavelength range: 1260–1650 nm
●G.657A1 bend-insensitive fiber for low bending loss
●Commonly used in PON, data communications, LAN, CATV, LCP, FTTx, and other applications
Specification:
Package Type:miniature
Port Configuration Type:1x3
Fiber Type:G.657A1
Fiber Mode:single-mode
Connector Type:SC/APC
Split Ratio:50/50
Fiber Diameter:900um
Pig Length:1.5m
Insertion Loss:≤6dB
Return Loss:≥55dB
Loss Uniformity:≤0.45dB
Directivity:≥55dB
Polarization Dependent Loss:≤0.2dB
Temperature-Dependent Loss:≤0.5dB
Wave Dependent Loss:≤0.3dB
Operating Wavelength:1260~1650nm
Operating Temperature:-40~85°C
Storage Temperature:-40~85°C
Conduit Dimensions (HxWxD):4x60x7mm
