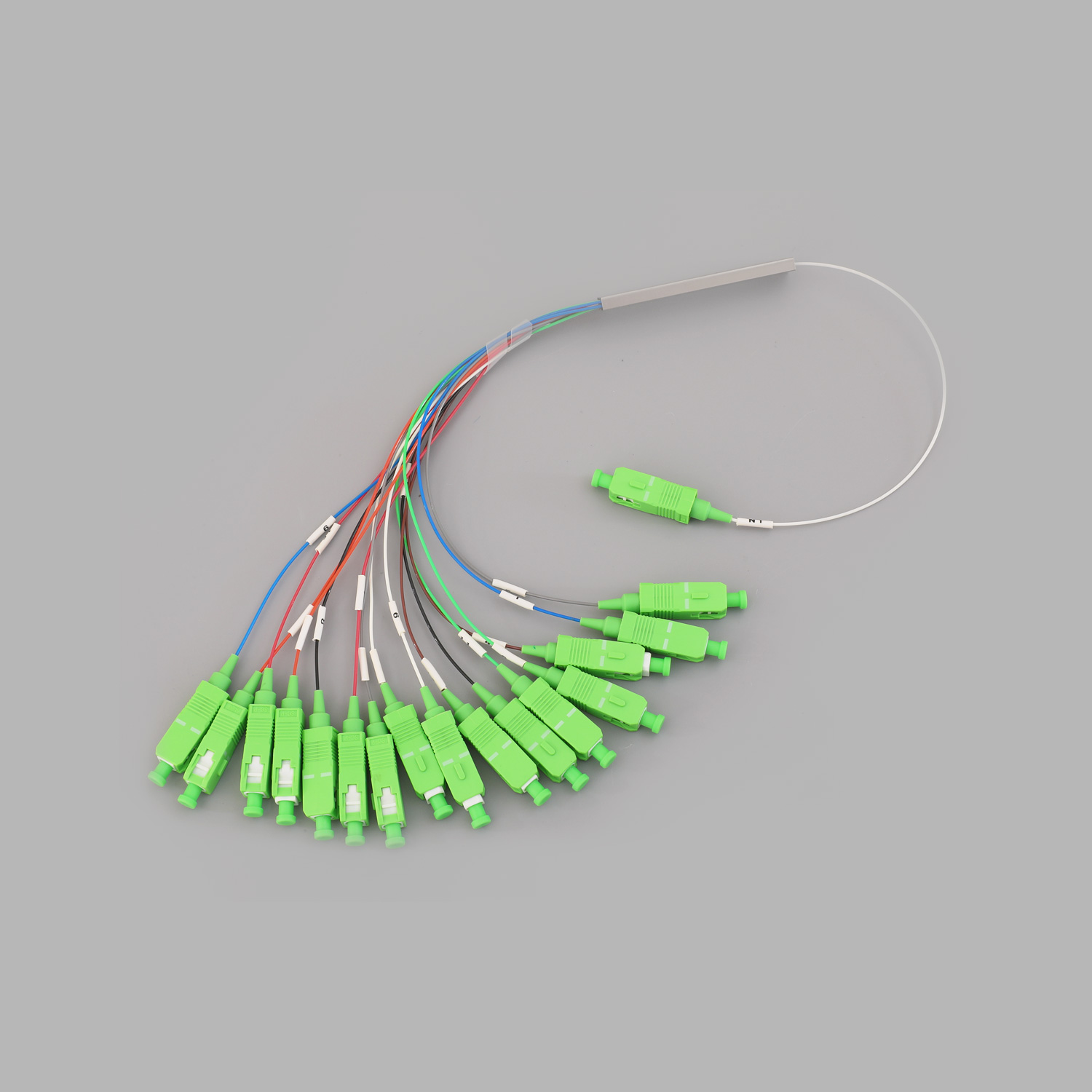

1x16 PLC fiber optic splitter, miniature, 900μm, SC/APC, single-mode
Product Features
-
Splits the input signal evenly into 16 output ports
-
Low insertion loss: ≤13.8 dB, low polarization-dependent loss: ≤0.3 dB
-
Fully passive optical splitter
-
Can be used individually or installed in racks, chassis, or fiber distribution boxes
-
Wide operating wavelength range: 1260–1650 nm
-
G.657A1 bend-insensitive fiber for low bending loss
-
Commonly used in POL, data communications, LANs, CATV, LCP, FTTx, and other applications
Specification
Package Type: miniature
Fiber Grade: G.657A1
Connector Type: SC/APC
Insertion Loss: ≤13.8dB
Loss Uniformity: ≤1.2dB
Polarization Dependent Loss: ≤0.3dB
Wave Dependent Loss: ≤0.5dB
Dimensions (H x W x D): 3.15"x0.79"x0.24"(80x20x6mm)
Configuration Type: 1x16
Fiber Type: single-mode
Split Ratio: 50/50
Return Loss: ≥55dB
Loss Uniformity: ≥55dB
Temperature-Dependent Loss: ≤0.5dB
Operating Bandwidth: 1260~1650nm
Temperature:Operating temperature: -40~85°C (-40~185°F)
Storage temperature: -40~85°C (-40~185°F)
