Product Overview

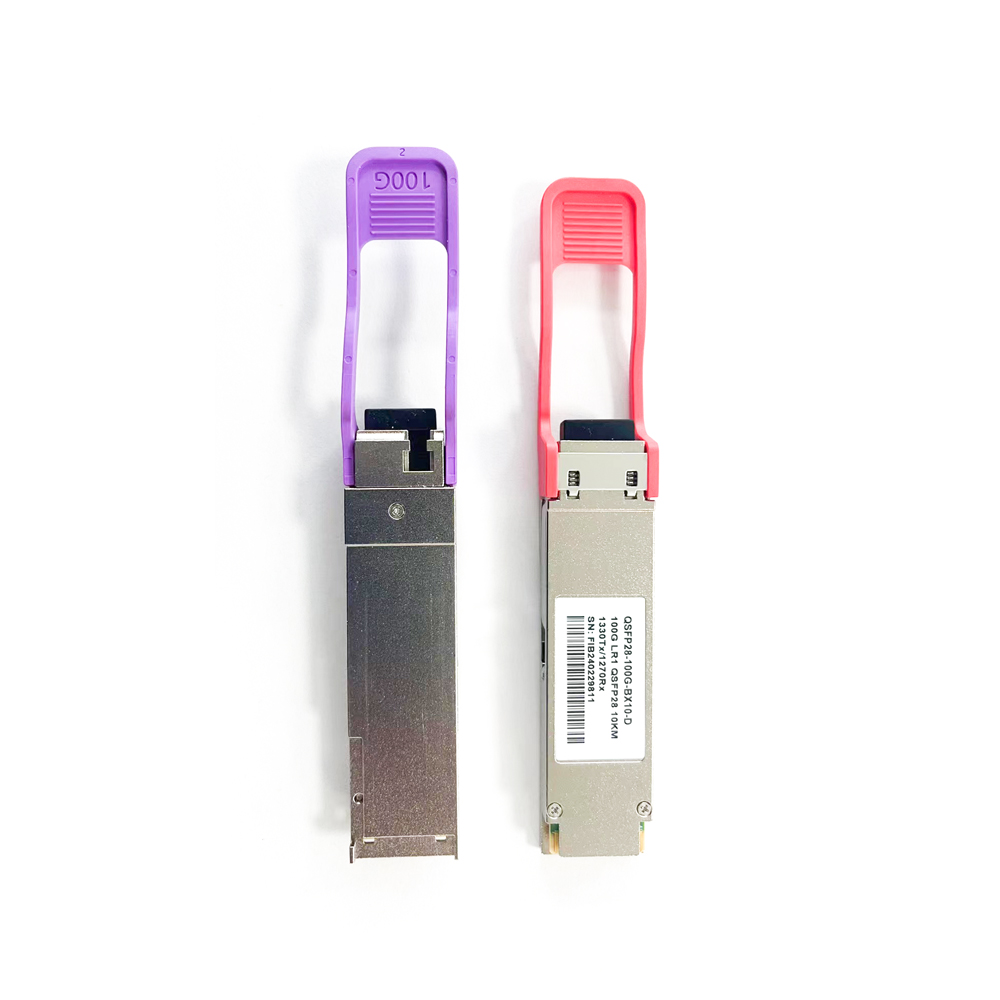

The 100G QSFP28 BIDI (Bidirectional) Optical Transceiver is a high-performance, single-fiber solution designed for 100 Gigabit Ethernet (100GbE) and high-density data center interconnects. Utilizing wavelength division multiplexing (WDM) technology, this module transmits and receives data over a single fiber strand—transmitting at 1270nm and receiving at 1330nm, enabling cost-effective 100G connectivity with 10km reach.
Key Features
✔ Single-Fiber 100G Transmission – BIDI technology reduces fiber infrastructure costs by 50% (vs. dual-fiber solutions).
✔ 10km Reach – Ideal for metro, data center interconnects (DCI), and campus networks.
✔ Low Power Consumption – <3.5W typical power, optimized for energy-efficient deployments.
✔ Hot-Pluggable & MSA-Compliant – QSFP28 form factor, compatible with major switch vendors (Cisco, Juniper, Arista, etc.).
✔ High Reliability – DSP-based CDR (Clock Data Recovery) ensures low BER (Bit Error Rate).
✔ Digital Diagnostics Monitoring (DDM) – Real-time monitoring of temperature, voltage, Tx/Rx power.
Technical Specifications
●Data Rate: 100Gbps (4×25G NRZ)
●Wavelength: 1270nm Tx / 1330nm Rx (Single-Fiber BIDI)
●Max Distance: 10km (over single-mode fiber, SMF)
●Connector Type: LC duplex (single-fiber bidirectional)
●Operating Temperature: 0°C to 70°C (Commercial) / -40°C to 85°C (Industrial option)
●Power Consumption: <3.5W
●Protocols Supported:
100GBASE-LR4 (100G Ethernet)
CPRI/OBSAI (5G fronthaul)
Data Center Interconnect (DCI)
Cloud & Enterprise Networks
Applications
●Data Center 100G Interconnects (spine-leaf, DCI)
●5G Mobile Fronthaul/Midhaul (CPRI/eCPRI)
●Metro & Long-Haul Optical Networks
●High-Performance Computing (HPC) & AI Clusters
●Telecom & Service Provider Networks
