Standard Shileded RG6

Category：COAXIAL CABLE

Detailed Product Description

RG-6 Type

Description of produce

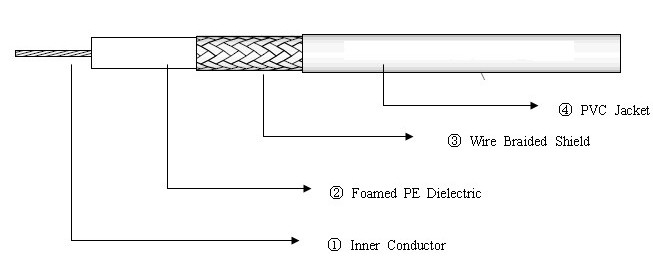

RG-6 ，1*1.02mm CCS /copper / CCA + 4.57 Foam PE + AL FOIL + 96×0.12 braiding + 6.8 PVC

Physical Dimensions

CONDUCTOR



Number of Coax

1

Total Number of Condcutor

1

RG Type

RG6

AWG

18

Stranding

1*1.02mm

Conductor Diameter

0.04in.

Conductor Material

CCS /copper /CCA

INSULATION



Insulation Material

PE-Polyethylene

Insulation Diameter

0.1799in.

OUTER SHIELD



Outer Shield Type

Braid

Outer Shield Material

AL/CCA / COPPER

Outer Shield Coverage

-

OUTER JACKET



Outer Jacket Material

PVC-Polyvinyl Chloride

OUTER NOMIAL DIAMETER



Overall Nominal Diameter

0.2677 in.

MECHANICAL CHARACTERISTICS



Operating Temperature Range

-10℃----65℃

EU RoHS Compliant(Y/N)

YES

ELECTRICAL CHARACTERISTICS



Nom. Characteristic Impedance

75Ohms

Nom. Capacitance Conductor to Shield

53pF/ft

Nom. Velocity of Propagation

66%





RG6 SERIES




Physical Dimensions

Component

Standard Shield
mm

Tri Shield
mm

Quad Shield
mm

Center Conductor

1.02

1.02

1.02

Dielectric

4.57

4.57

4.57

Outer Conductor

5.44

5.60

6.32

Jacket

6.91

7.06

7.62

Jacket Wall Thickness

0.76

0.76

0.75

Messenger

single

1.30

1.30

1.30

dual

1.83

1.83

1.83




Mechanical Characteristics


Electrical Characteristics

Minimun Breaking Strength
of Messenger

single

82kgf

dual

166kgf

Dielectric Adhesion

>20N/5cm



Capacitance

50±3.0 nf/km

Impedance

75±3.0 ohms

Velocity of Propagation

85%

Shielding
Effectiveness

55MHz

≥60dB

300MHz

≥70dB

1000MHz

≥70dB

Return Loss
(100% swept)

1～470MHz

≥22dB

470～1000MHz

≥20dB

1000～2200MHz

≥18dB



Notes:
1. The conductivity should be more than 23% when CCS is used as inner conductor.
2. 60% coverage for inner shield, 42% coverage for outer shield.


Attenuation (20℃)

For CATV

For Satellite

Frequency(MHz)

Maximum(dB/100m)

Frequency(MHz)

Maximum(dB/100M)

5

1.90

1

0.82

55

5.25

10

2.30

83

6.40

50

4.79

187

9.35

100

6.40

211

10.00

200

8.96

250

10.28

400

12.47

300

11.64

700

17.06

350

12.63

900

19.36

400

13.61

1000

20.67

450

14.43

1200

22.31

500

15.09

1450

24.93

550

16.08

1800

26.90

600

16.73

2200

32.15

750

18.54





865

20.01





1000

21.49
