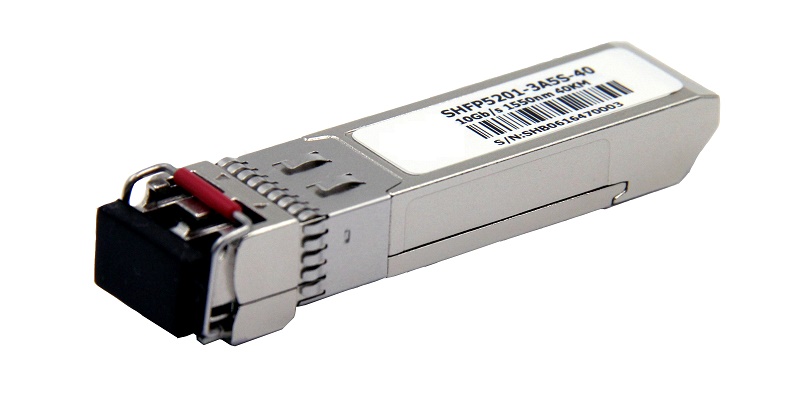

SKP-10G-LX10 SFP-10G Transceiver Optical Module
10Gb/s SFP+ Transceiver
Hot Pluggable, Duplex LC, +3.3V, 1310nm DFB/PIN, Single mode, 10km
SHPP-10G-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s, inter-converting the 10Gb/s serial electrical data stream with the 10Gb/s optical signal. It complies with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It features hot plug, easy upgrading and low EMI emission. The high-performance 1310nm DFB transmitter and high-sensitivity PIN receiver provide superior performance for Ethernet applications up to link length of 10km on single mode fiber.Features:
● Supports 9.95 to 11.3Gb/s bit rates
● Hot-Pluggable
● Duplex LC connector
● 1310nm DFB transmitter, PIN photo-detector
● SMF links up to 10km
● 2-wire interface for management specifications compliantwith SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● Power consumption<1.5W
● Commercial Temperature Range: 0~ 70°C
● Industrial Temperature Range: -40~ +85°C
● RoHS compliant
