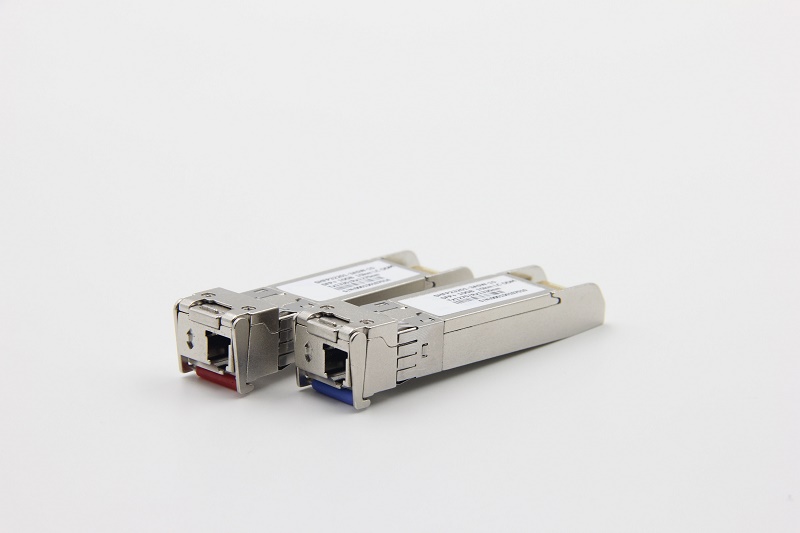

SKP-10G-LX10TAB SFP-10G Bidi Transceiver Module
SHPP-10G-B10 10Gb/s BiDi optical transceiver inter-converts the 10Gb/s serial electrical data stream with the 10Gb/s optical signal. It complies with SFP+ Multi-Source Agreement (MSA) Specification, 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It features hot plug, easy upgrading and low EMI emission. It supports the optical link length of 10km on a single core single mode fiber.
Features:
● Supports 9.95Gb/s to 11.3Gb/s bit rates
● Hot-pluggable
● Single LC for Bi-directional Transmission
● SMF link up to 10km
● Built-in 1270/1330 WDM Filter
● Uncooled 1270nm or 1330nm CWDM DFB Laser
● No Reference Clock required
● Built-in digital diagnostic functions
● Power Supply :+3.3V
● Power consumption<1.5W
● Commercial Temperature Range: 0~ 70°C
● Industrial Temperature Range: -40~ +85°C (optional)
● Very low EMI and excellent ESD protection
● RoHS compliant
