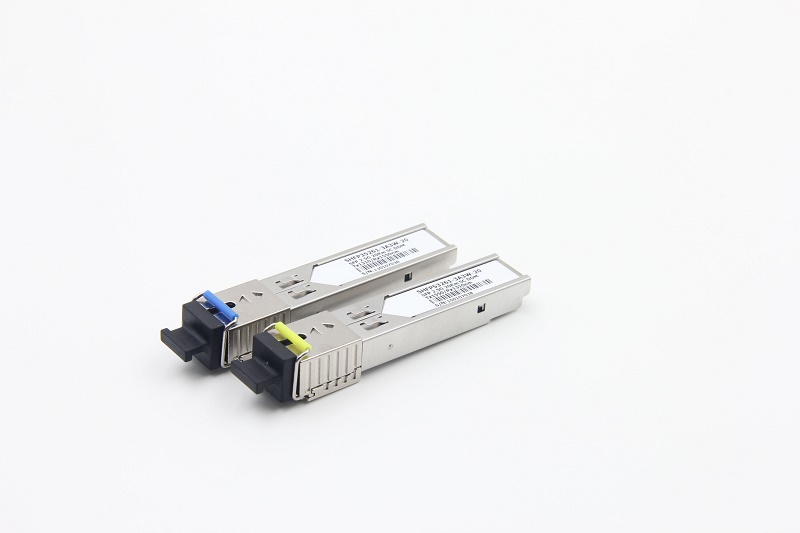

SHFP-2G-B20 high performance, cost-effective 2.5G BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It adopts high-performance DFB transmitter and high-sensitivity PIN receiver, provides up to 13dB link budge for SONET OC-48 / SDH STM -16 applications up to 20km on a single core single mode fiber.
Features:
● Up to 2.67Gb/s Data Links
● Hot-Pluggable
● Simplex LC connector; SC optional
● DFB transmitter, PIN photo-detector
● 20km on a single core SMF
● 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● Power consumption<1W
● Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
● RoHS compliant
Features:
● Up to 2.67Gb/s Data Links
● Hot-Pluggable
● Simplex LC connector; SC optional
● DFB transmitter, PIN photo-detector
● 20km on a single core SMF
● 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● Power consumption<1W
● Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
● RoHS compliant
