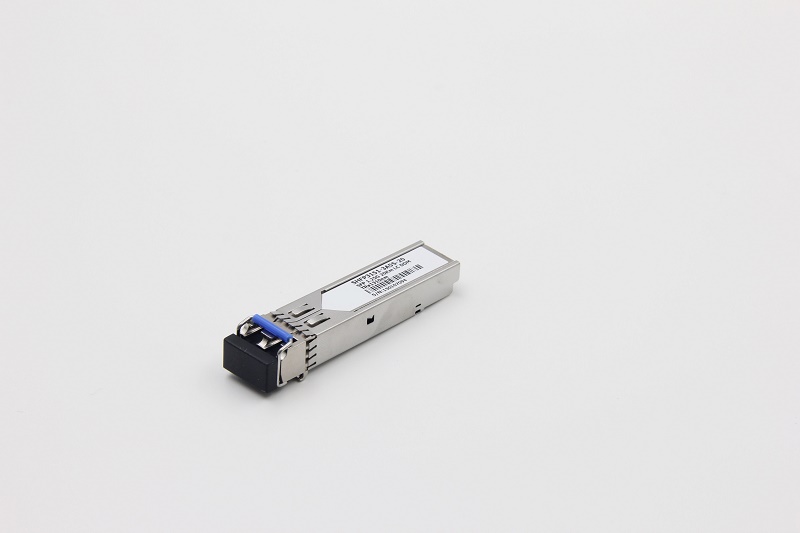

SHFP-GE-LX high performance, cost effective transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It adopts high-performance 1310nm FP transmitter and high-sensitivity PIN receiver, provides up to 12dB link budge for Gigabit Ethernet applications up to 20km on single mode fiber.
Features:
● Up to 1.25Gb/s Data Links
● Hot-Pluggable
● Duplex LC connector
● 1310nm FP transmitter, PIN photo-detector
● 20km on SMF
● 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● Power consumption<1W
● Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
● RoHS compliant
