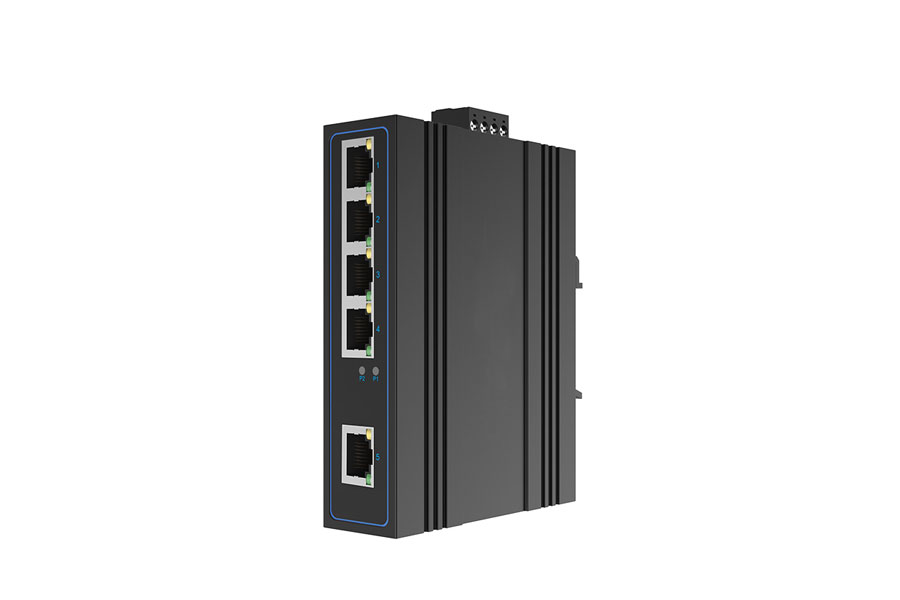

SKP-IG305 Gigabit 5*Lan Industrial Grade Switch
Product Description：
This device adopts store-and-forward architecture with fanless and low-power design, featuring user-friendly operation, compact size and easy maintenance. Compliant with Ethernet standards, it incorporates lightning and ESD protection. With wide operating temperature range (-40℃ to +85℃) and stable performance, it's widely applicable in intelligent transportation, telecommunications, security, finance, customs, maritime, power, water conservancy, oil fields and other broadband data transmission fields.
Product Parameters：
Interfaces (Provider Mode Ports):
• Service Ports: 5×10/100/1000Base-T
• Management Port: Not supported
• Power Interface: Phoenix terminal, dual power redundancy
• LED Indicators: PWR, Link/ACT LED
Cable Types & Transmission Distance:
• Twisted-pair: 0-100m (CAT5e/CAT6)
• Single-mode fiber: Not supported
• Multimode fiber: Not supported
Network Topology & Scale:
• Ring topology: Not supported
• Star topology: Supported (unlimited scale)
• Bus topology: Supported (unlimited scale)
• Tree topology: Supported (unlimited scale)
Electrical Specifications:
• Input voltage: DC10-58V
• Power consumption: <6W (full load)
PoE Support (Optional):
• PoE ports: 1-4
• PoE Protocol: 802.3af, 802.3at
• Pin Assignment: 1,2,3,6
• PoE Management: Supported
Layer 2 Switching:
• Switching capacity: 10G
• Packet forwarding rate: 7.44Mpps
• MAC address table: 8K
• VLAN: Not supported
• Buffer: 1M
• Forwarding delay: <4μs
• Port Feature: Auto MDI/MDIX
• Traffic control: Supported
• Jumbo Frame: Supports 10Kbytes
Environment:
• Operating temperature: -40℃ to +85℃
• Storage temperature: -40℃ to +85℃
• Relative humidity: 5% to 95% (non-condensing)
• Thermal method: Fanless, natural convection
• MTBF: 100,000 hours
Mechanical Dimensions:
• Size: 143×104×48mm
• Installation: DIN rail mounting
• Weight: 0.52kg
EMC & Ingress Protection:
• IP Level: IP40
• Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20μs)
• Ethernet surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700μs)
• EMI: CLASS A
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m
Certifications:
• Ministry of Public Security & MIIT test reports
• Network access license
• CCC, CE, FCC, RoHS
Accessories:
• Standard: Device, terminal, certificate, manual
• Optional: Power adapter
Optional Model: 65-5GT
Description: 5×10/100/1000M auto-negotiation ports (PoE optional)
