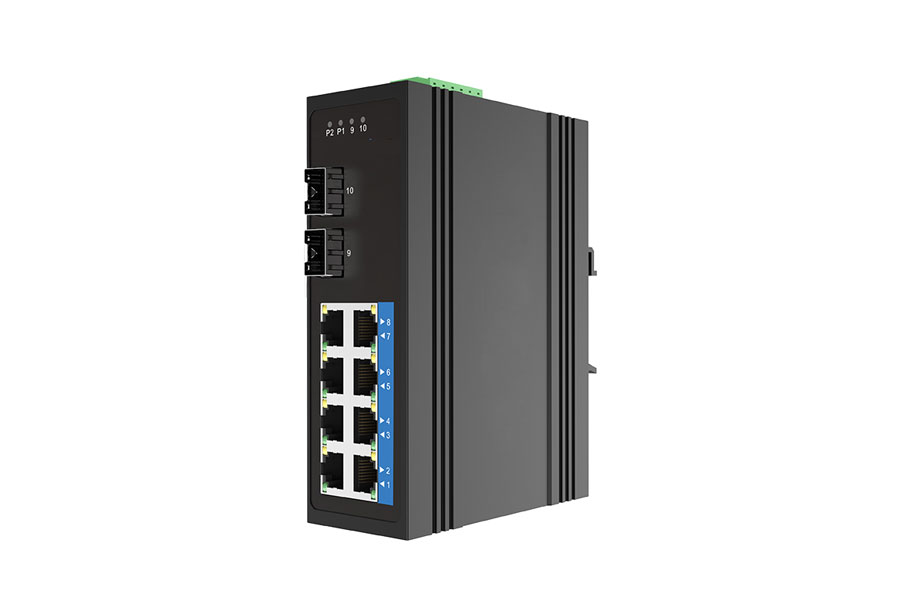

SKP-IG9003B8-SFP Gigabit 2*SFP+ 8*Lan Industrial Grade Converter
Product Overview:
Gigabit Managed Industrial Ethernet Switch with 8×10/100/1000Base-TX ports and 2×1000Base-FX SFP slots. Supports G.8032 EPRS Ethernet Ring Protection Switching protocol with <20ms self-healing time, ensuring rapid network recovery during failures to maintain uninterrupted communication for critical applications.
Features extended operating temperature range (-40~+75°C) for reliable performance in harsh environments. Offers Layer 2 management capabilities with Web/Telnet/Console(CLI) configuration interfaces.
●Ideal for industrial applications including:
●Industrial control automation
●Road traffic control systems
●Building automation systems
●Mine automation control systems
●Oilfield automation
●Hydropower plant automation
●Power system automation
●Data center monitoring systems
Standard Protocols:
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-X
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3x Flow Control
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
IEEE 802.1p CoS (Class of Service)
IEEE 802.1Q VLAN (Virtual Local Area Network)
IEEE 802.1D STP (Spanning Tree Protocol)
IEEE 802.1W RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1X Authentication
IEEE 802.1AB LLDP (Link Layer Discovery Protocol)
Redundant Networks:
Supports STP/RSTP/MSTP
Supports EAPS, ERPS
Multicast Support:
Supports IGMP Snooping V1/V2/V3
Supports GMRP
VLAN:
Supports IEEE 802.1Q 4K VLAN
Supports Q-in-Q
Link Aggregation:
Supports manual aggregation
Supports static/dynamic LACP protocol
QoS:
Supports CoS, DSCP, 8 queues
Supports WRR, SP, WFQ scheduling modes, policy QoS
Diagnostics & Maintenance:
Supports port mirroring
Supports Syslog
Supports Ping command, etc.
Management Functions:
Supports CLI, WEB, SNMP v1/v2 management methods
Alarm Management:
Supports one relay alarm output
Supports ROMN management, TRAP alarm
Security Features:
Supports DHCP Snooping, Option 82
Supports 802.1X
Supports hierarchical user management
Supports ACL (Access Control List)
Supports DDoS protection
Supports port-based MAC filtering/binding
Port Management:
Supports port enable/disable
Supports rate limiting
Supports 802.3x flow control
Supports port name modification
Interfaces:
• Gigabit Ethernet Ports: 8×RJ45 ports, 10/100/1000Mbps auto-negotiation, optional 10/100/1000Base-T PoE support
• Gigabit Fiber Ports: 2×SFP slots supporting 100M/1000M optical modules
• Management Interface: 1×RJ45 console port
• Power Interface: 8-pin 5.08mm pitch terminal block
Switching Characteristics:
• Buffer Size: 4Mbits
• Maximum Frame Length: Up to 10000 bytes
• MAC Address Table: 8K entries
• Forwarding Mode: Store-and-forward
LED Indicators:
• Power indicator
• System operation indicator (SYS)
• Alarm status indicator (ALM)
• Ethernet port ACT/SPD link/speed indicators
• Fiber port status indicators
Power Supply:
• Operating Voltage: DC 9~56V, DC 5V
• Rated Current: 0.45/0.2A
• Power Consumption: <15W
Mechanical Specifications:
• Protection Rating: IP40
• Mounting: DIN rail mounting
• Dimensions: 138mm×106mm×41mm (L×W×H)
• Weight: 600g
Environmental Requirements:
• Operating Temperature: -40℃~75℃
• Storage Temperature: -40℃~85℃
• Relative Humidity: 5%~95% (non-condensing)
Reliability:
• MTBF: 500,000 hours
Safety Compliance:
• Lightning Protection: 6KV; Standard: IEC61000-4-5
• ESD Protection: 6KV contact discharge, 8KV air discharge; Standard: IEC61000-4-2
