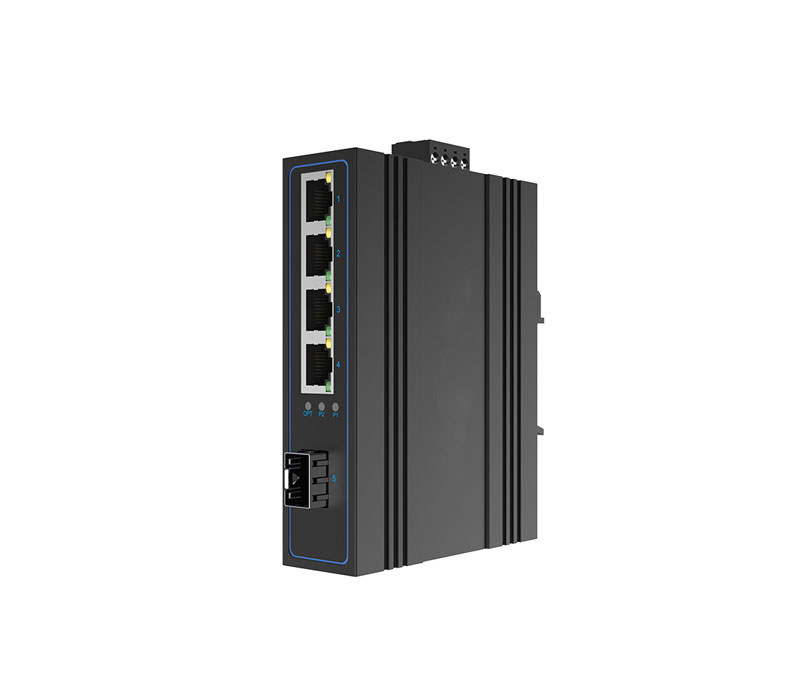

SKP-IG9003S4-SFP Gigabit SFP+ 4*Lan Industrial Grade Converter
Product Overview:
Industrial-grade Ethernet switches are cost-effective products featuring high performance and reliability. Designed for broadband network access applications, they provide robust fiber-optic solutions with sufficient bandwidth and dependable performance for Ethernet data switching, aggregation, and long-distance optical transmission.
The SH-G0104 industrial-grade switching equipment complies with FCC/CE standards and features a compact size, fanless design, low power consumption, high reliability, stability, and easy maintenance. Specifically optimized for security data transmission, it boasts a 4096KBPS (4M) packet buffer, supports jumbo frames up to 16K bytes, and maintains a 16K MAC address table, ensuring smooth video transmission without lag or frame loss.
Suitable for diverse industries including telecommunications, mobile networks, China Unicom, broadcasting & TV, power systems, intelligent transportation, finance, education, enterprises, energy, security, and water conservancy, it serves as an ideal solution for metropolitan and community broadband networks at the communication level, as well as a perfect device for broadband access and fiber-optic transmission.
Product Features:
• Ethernet ports support AUTO-MDIX with auto-negotiation for speed (10/100/1000Mbps) and full/half duplex modes
• Optical ports available with SC/FC/ST/LC connectors, supporting both single-fiber and dual-fiber transmission
• Switching capacity: 5.6Gbps backplane bandwidth
• Forwarding rate: 4.16 million packets per second (Mpps)
• Ultra-low latency: <7 microseconds
• 4MB packet buffer ensures smooth video transmission with zero packet loss
• Supports jumbo frames up to 16KB, compatible with various extension protocols
• 16K-entry MAC address table
• Energy Efficient Ethernet (EEE) compliant with IEEE 802.3az standard
• IPv6 protocol support
• 4KV surge protection on copper ports for harsh outdoor environments
• Comprehensive status LEDs for real-time monitoring
• Reverse polarity protection on power input
• Rugged metal housing with fanless thermal design
• IP40-rated enclosure protection
• Flexible DIN-rail or wall-mount installation options
Product Specification:
Model: SKP-IG9003S4-SFP
Electrical Ports: 4 × 10/100/1000Base-T
Optical Port: 1 × 1000Base-X (1×9/SFP)
Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az,
IEEE 802.3Qad, IEEE 802.3ah, IEEE 802.1X, IEEE 802.1Q, IEEE 1588
Packet Buffer: 4Mb
Maximum Packet Length: 16K (Jumbo Frame)
MAC Address Table: 16K
Transmission Mode: Store-and-forward, supports full/half duplex operation
Switching Characteristics:
Latency: <7μs
Backplane Bandwidth: 5.6Gbps
System Forwarding Rate: 4.16Mbps
LED Indicators: 10
Power Indicator: On - steady light
Electrical Port Indicators:
Link/Act: Connected - steady light; Data transfer - flashing
Speed Indicator: 1000M - steady light; 10M/100M - off
Optical Port Indicator:
Link/Act: Connected - steady light; Data transfer - flashing
Power Connection: Phoenix terminal, DC jack
Redundant Power Input: DC 9-55V, DC 5-52V
Overload Protection: Yes
Reverse Polarity Protection: Supported
Power Consumption: <6W (full load)
Protection Rating: IP40
Cooling Method: Natural convection, fanless design
Product Dimensions: 140mm × 118mm × 43mm (L × W × H)
Installation: DIN rail mounting & bracket mounting
Weight: Approx. 550g
Storage Temperature: -40℃ to 85℃
Operating Temperature: -20℃ to 75℃
Operating Humidity: 5% to 95% non-condensing
MTBF: 100,000 hours
