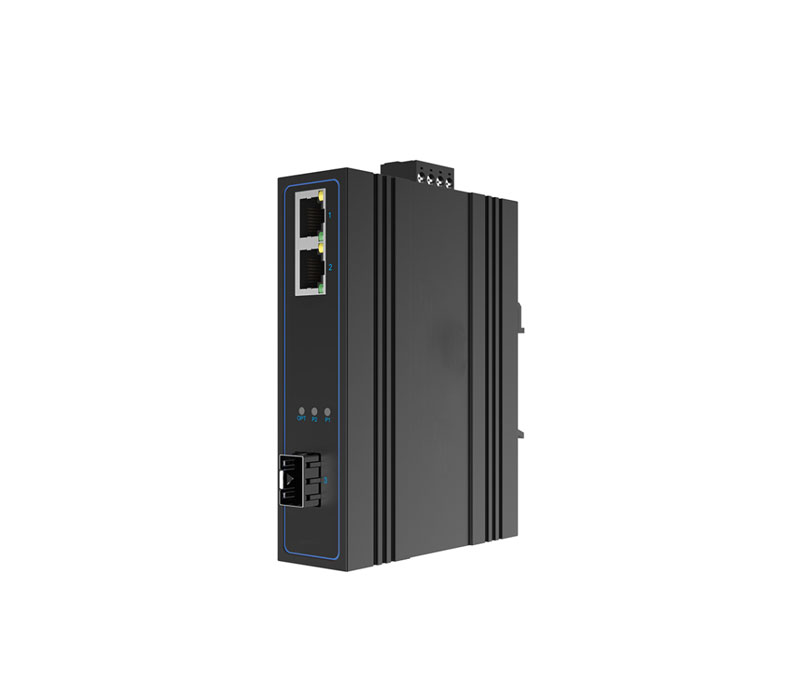

Gigabit SFP+ 2*Lan Industrial Grade Converter
Product Overview:
Industrial-Grade Ethernet Switches are cost-effective, high-performance, and highly reliable products designed for broadband network access applications. They provide robust fiber-optic networking solutions with ample bandwidth and dependable performance for Ethernet data switching, aggregation, and long-distance optical transmission.
The SH-G0102 Industrial-Grade Switch complies with FCC/CE standards, featuring a compact size, fanless design, low power consumption, high reliability, stability, and easy maintenance. It is specially optimized for security data transmission, with a 4MB (4096KB) packet buffer, support for 16K-byte jumbo frames, and a 16K MAC address table, ensuring smooth, stutter-free, and lossless video transmission.
This switch is widely applicable across industries, including telecommunications, mobile networks, China Unicom, broadcasting & TV, power systems, intelligent transportation, finance, education, enterprises, energy, security, and water conservancy. It serves as an ideal solution for metro and community broadband networks, making it the perfect choice for broadband access and fiber-optic transmission.
Product Features:
• Ethernet ports support AUTO-MDIX, with auto-negotiation for speed and full/half duplex modes
• Optical ports support SC/FC/ST/LC interfaces, compatible with single-fiber/dual-fiber transmission
• Total backplane bandwidth: 5.6Gbps
• System forwarding rate: 4.16Mpps
• Latency: <7μs
• 4MB buffer ensures smooth video transmission without packet loss or lag
• Supports 16K-byte jumbo frames, compatible with various extended protocols
• 16K MAC address table
• Supports IEEE 802.3az Energy Efficient Ethernet technology
• Supports IPv6 protocol
• 4KV surge protection on electrical ports for reliable outdoor operation
• Comprehensive status indicators for clear operational monitoring
• Reverse polarity protection on power input
• Metal enclosure with fanless design
• IP40 protection rating
• DIN-rail or wall-mount installation options
Product Specification:
• Electrical ports quantity and speed: 2 × 10/100/1000Base-T
• Optical ports quantity and speed: 1 × 1000Base-X (1×9/SFP)
• Ethernet standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az,
IEEE 802.3Qad, IEEE 802.3ah, IEEE 802.1X, IEEE 802.1Q, IEEE 1588
• Packet buffer: 4Mb
• Maximum packet length: 16K (Jumbo Frame)
• MAC address table: 16K
• Transmission mode: Store-and-forward, supports full/half duplex operation
• Switching characteristics:
Latency: <7μs
Backplane bandwidth: 5.6Gbps
System forwarding rate: 4.16Mbps
• LED indicators: 6
• Power indicator: On - steady light
• Electrical port indicators:
Link/Act: Connected - steady light; Data transfer - flashing
Speed indicator: 1000M - steady light; 10M/100M - off
• Optical port indicator:
Link/Act: Connected - steady light; Data transfer - flashing
• Power connection: Phoenix terminal, DC jack
• Redundant power input: DC 9-55V, DC 5-52V
• Overload protection: Yes
• Reverse polarity protection: Supported
• Power consumption: <6W (full load)
• Protection rating: IP40
• Cooling method: Natural convection, fanless design
• Product dimensions: 140mm × 118mm × 43mm (L × W × H)
• Installation: DIN rail mounting & bracket mounting
• Weight: Approx. 550g
• Storage temperature: -40℃ to 85℃
• Operating temperature: -20℃ to 75℃
• Operating humidity: 5% to 95% non-condensing
• MTBF: 100,000 hours
