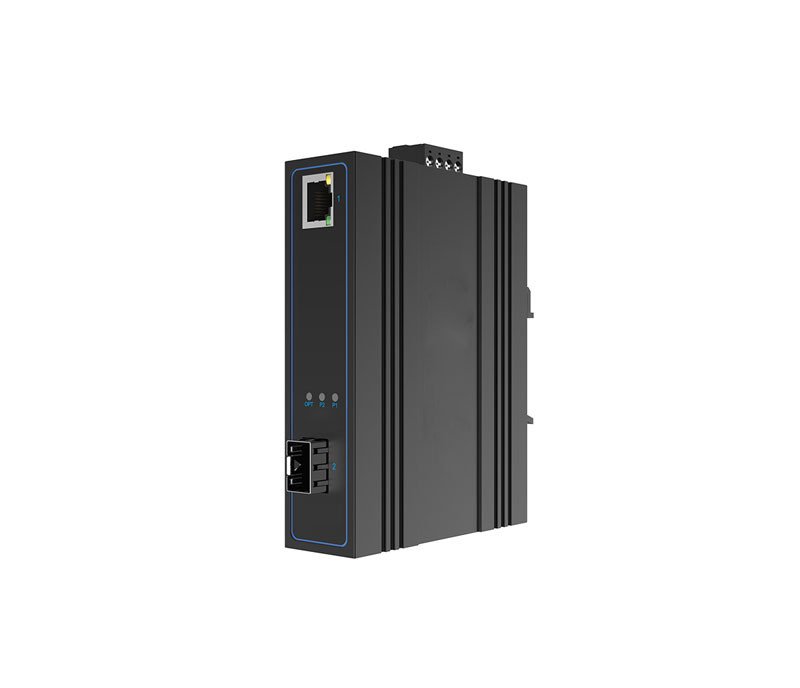

SKP-IG9003A1-SFP Gigabit SFP+ Single Lan Industrial Grade Converter
Product Overview:
Industrial-grade transceivers are cost-effective products that deliver high performance and reliability. They are designed for the broadband network access market, providing users with fiber-optic network solutions that offer ample bandwidth and dependable performance for Ethernet data switching, aggregation, and long-distance optical transmission.
The SH-G0101 industrial-grade switching equipment complies with FCC/CE standards and features a compact size, fanless design, low power consumption, high reliability and stability, and easy maintenance. It is specifically optimized for security data transmission, with a data packet buffer of up to 4096 KBPS (4M), support for jumbo frames up to 16K bytes, and a MAC address table capacity of 16K, ensuring smooth and lossless video transmission.
It is suitable for a wide range of industries, including telecommunications, mobile networks, China Unicom, broadcasting and TV, power systems, intelligent transportation, finance, education, enterprises, energy, security, and water conservancy. It serves as an ideal solution for metropolitan and community broadband networks at the communication level, as well as an optimal device for broadband access and fiber-optic transmission.
●Ethernet ports support AUTO-MDIX and auto-negotiation for speed and full/half duplex modes.
●Optical ports support SC/FC/ST/LC interfaces and single-fiber/dual-fiber transmission.
●Backplane bandwidth: 5.6Gbps
●Forwarding rate: 4.16Mpps
●Latency: <7μs
●4Mb buffer ensures smooth video transmission with no packet loss or lag.
●Supports 16K-byte jumbo frames and is compatible with various extended protocols.
●16K MAC address table capacity.
●Supports IEEE 802.3az Energy Efficient Ethernet (EEE) technology.
●Supports IPv6 protocol.
●4KV surge protection on electrical ports for reliable outdoor operation.
●Comprehensive status indicators for clear operational monitoring.
●Reverse polarity protection on power input for worry-free installation.
●Metal casing with fanless design.
●IP40 protection rating.
●Supports DIN-rail or wall-mount installation.
Product Specification:
●Port Configuration:
Electrical Ports: 1 × 10/100/1000Base-T
Optical Ports: 1 × 1000Base-X (1×9/SFP)
●Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az,
IEEE 802.3Qad, IEEE 802.3ah, IEEE 802.1X, IEEE 802.1Q, IEEE 1588
●Key Specifications:
Packet Buffer: 4Mb
Max. Packet Length: 16K (Jumbo Frame)
MAC Address Table: 16K
Transmission Mode: Store-and-forward, supports full/half duplex
●Switching Performance:
Latency: <7μs
Backplane Bandwidth: 5.6Gbps
Forwarding Rate: 4.16Mpps
●LED Indicators (4 in total):
Power: On – Steady
Electrical Port:
Link/Act: Connected – Steady; Data transfer – Flashing
Speed: 1000M – Steady; 10M/100M – Off
Optical Port:
Link/Act: Connected – Steady; Data transfer – Flashing
●Power Supply:
Connection: Phoenix terminal, DC jack
Redundant Input: DC 9-55V, DC 5-52V
Overload Protection: Yes
Reverse Polarity Protection: Supported
Power Consumption: <6W (Full load)
●Protection & Cooling:
Ingress Protection: IP40
Cooling Method: Natural convection, fanless design
●Physical Specifications:
Dimensions: 140mm × 118mm × 43mm (L × W × H)
Installation: DIN rail mounting & bracket mounting
Weight: ~550g
●Environmental Conditions:
Storage Temperature: -40℃ to 85℃
Operating Temperature: -20℃ to 75℃
Operating Humidity: 5% to 95% (Non-condensing)
MTBF: 100,000 hours
