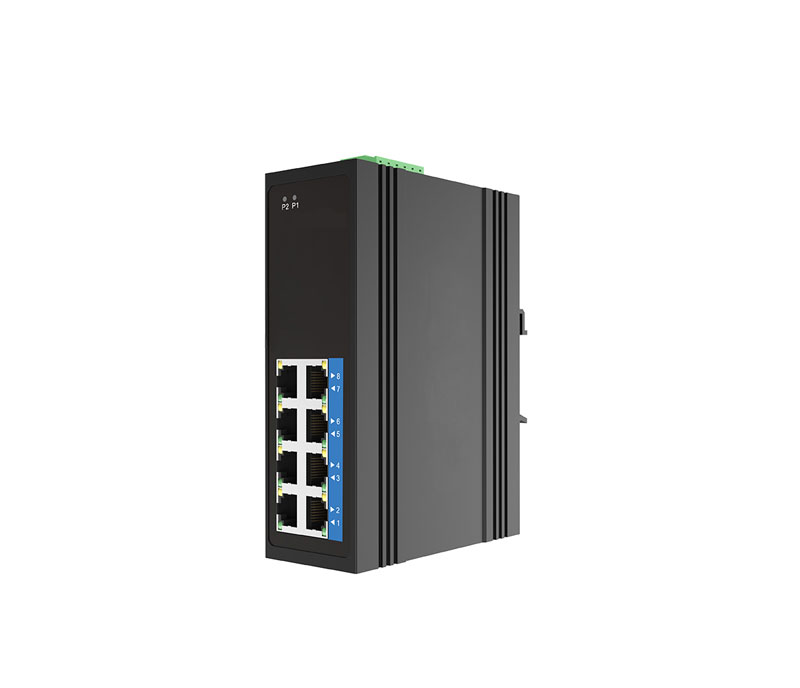

Product Overview:
The device adopts storage and forwarding, no fan, low power consumption design, with easy to use, small size, simple maintenance and other advantages. Product design in line with Ethernet standards, add lightning protection, anti-static protection measures, -40℃ ~ +85℃ wide range of operating temperature, stable and reliable performance, can be widely used in intelligent transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy and oil fields and other broadband data transmission fields.
Product Features:
●Input Voltage: DC 10-58V
●Operating Temperature: -40℃ to +85℃
●Enclosure: IP40 protection rating, fanless design
●Certification: CCC compliance
●ESD Protection: 8KV-15KV electrostatic discharge protection
●MTBF: 100,000 hours
Product Specification:
Interface (Provider Mode Ports)
●Service Port (Fixed port): 8×10/100Base-T
●Management Port: Not supported
●Power Interface: Phoenix terminal, dual power redundancy
●LED Indicators: PWR, Link/ACT
Cable Type & Transmission Distance
●Twisted-pair (CAT5e/CAT6): 0–100m
●Single-mode fiber: Not supported
●Multimode fiber: Not supported
Network Topology & Scale
●Ring topology: Not supported
●Star topology: Supported (unlimited scale)
●Bus topology: Supported (unlimited scale)
●Tree topology: Supported (unlimited scale)
Electrical Specifications
●Input voltage: DC 10–58V
●Power consumption: <6W (full load)
PoE Support (Optional)
●PoE ports: 1–8
●PoE protocol: 802.3af, 802.3at
●Pin assignment: 1,2,3,6
●PoE management: Supported
Layer 2 Switching
●Switching capacity: 5.6G
●Packet forwarding rate: 4.16Mpps
●MAC address table: 8K
●VLAN support: Not supported
●Buffer: 1M
●Forwarding delay: <4μs
●Port feature: Auto MDI/MDIX
●Traffic control: Supported
●Jumbo Frame: Supported (1632 bytes)
Environmental Conditions
●Operating temperature: -40℃ to +85℃
●Storage/transport temperature: -40℃ to +85℃
●Relative humidity: 5%–95% (non-condensing)
●Cooling method: Fanless, passive cooling
●MTBF: 100,000 hours
Mechanical Dimensions
●Size: 143×104×48mm
●Installation method: DIN-rail mounting
●Weight: 0.54kg
EMC & Ingress Protection
●IP rating: IP40
●Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV, 8/20μs)
●Ethernet surge protection: IEC 61000-4-5 Level 3 (4KV/2KV, 10/700μs)
●EMI: Class A
●ESD protection: IEC 61000-4-2 Level 4 (8KV/15KV)
●Free fall resistance: 0.5m
Certifications
●Compliance reports: Ministry of Public Security, MIIT
●Network access license: CCC, CE, FCC, RoHS
Accessories
●Included: Device, terminal block, certificate, user manual
●Optional: Power adapter
Optional Model
●Model: 65-8TX
●Description: 8×10/100M auto-negotiation Ethernet ports
