Product Overview:
Industrial-grade switches are cost-effective products with high performance and reliability. Positioned in the broadband network access market, they provide users with fiber optic network solutions featuring sufficient bandwidth and reliable performance for Ethernet data switching, aggregation, and long-distance optical transmission.

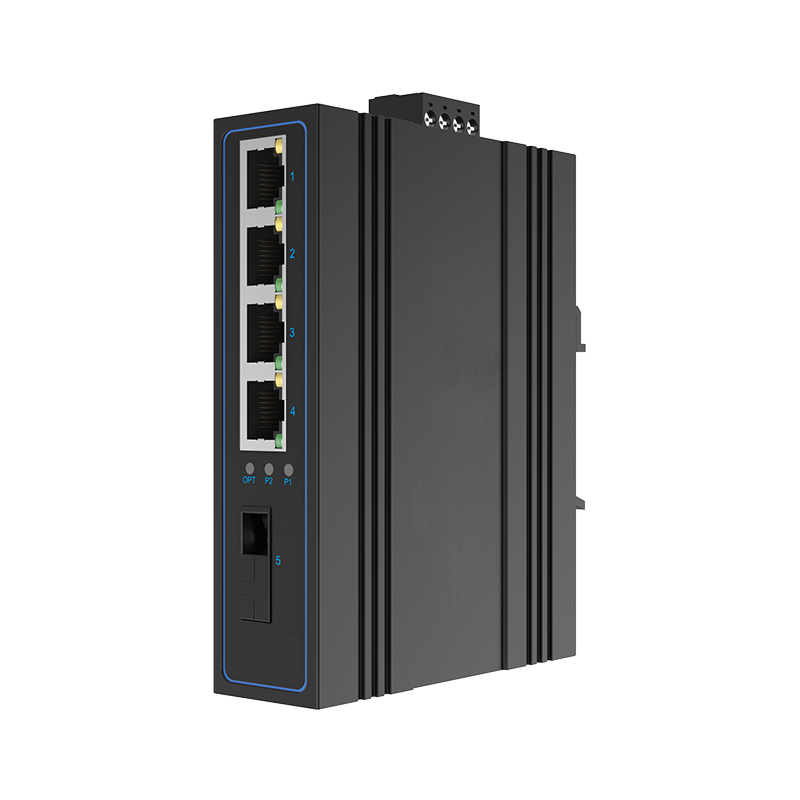

The SH-G0104 industrial-grade switching equipment complies with FCC/CE standards and features compact size, fanless design, low power consumption, high reliability and stability, as well as simple maintenance. It is specially optimized for security data transmission with:
● Packet buffer up to 4096KBPS (4M)
● Support for jumbo frames up to 16K bytes
●MAC address table capacity of 16K
These features ensure smooth video transmission without lag or frame loss.
The device is suitable for various industries including telecommunications (China Mobile, China Unicom), broadcasting, power systems, intelligent transportation, finance, education, enterprises, energy, security, water conservancy, etc. It serves as an ideal solution for:
●Carrier-grade metropolitan area networks
●Community broadband networks
●Broadband access
●Fiber optic transmission applications
Product Features:
Ethernet Ports: Support AUTO-MDIX with auto-negotiation of speed and full/half duplex modes
Fiber Ports: Available with SC/FC/ST/LC interfaces, supporting single/dual fiber transmission
Backplane Bandwidth: 5.6Gbps
Forwarding Rate: 4.16Mpps
Latency: <7μs
Buffer Memory: 4MB, ensuring smooth video transmission without packet loss or lag
Jumbo Frames: Supports up to 16KB, compatible with various extended protocols
MAC Address Table: 16K entries
Energy Efficiency: Complies with IEEE 802.3az Energy Efficient Ethernet standard
Protocol Support: IPv6
Surge Protection: 4KV surge protection on electrical ports for outdoor applications
Status Indicators: Comprehensive LED indicators for clear operational status
Power Protection: Reverse polarity protection design
Enclosure: Metal housing with fanless design
Protection Rating: IP40
Mounting Options: DIN-rail or wall-mount installation
Product Specification:
●Electrical Ports: 4×10/100/1000Base-T
●Optical Port: 1×1000Base-X (1*9/SFP)
Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az,
IEEE 802.3Qad, IEEE 802.3ah, IEEE 802.1X, IEEE 802.1Q, IEEE 1588
Switching Specifications:
●Packet Buffer: 4Mb
●Maximum Packet Length: 16K (Jumbo Frame)
●MAC Address Table: 16K
●Transmission Mode: Store-and-Forward, supports Full/Half Duplex
Performance Characteristics:
●Latency: <7μs
●Backplane Bandwidth: 5.6Gbps
●Forwarding Rate: 4.16Mbps
Indicator Lights:
●Total LEDs: 10
●Power Indicator: Solid on (normal operation)
●Electrical Port Indicators:
Link/Act: Solid (connected), Flashing (data transmission)
Speed: Solid (1000M), Off (10M/100M)
●Optical Port Indicator:
Link/Act: Solid (connected), Flashing (data transmission)
Power Supply:
●Connection: Phoenix Terminal, DC Jack
●Redundant Power Input: DC 9-55V, DC 5-52V
●Overload Protection: Yes
