Product Overview:
Industrial switches are economical, practical, high-performance and reliable products. They are positioned in the broadband network access market, providing users with fiber optic network solutions with sufficient bandwidth and reliable performance to achieve Ethernet data exchange, aggregation and long-distance optical transmission. The SH-G0102 industrial-grade switching equipment complies with FCC/CE standards, and has the characteristics of small size, fanless, low power consumption, high reliability and stability, and simple maintenance. In particular, it has been optimized in security data transmission, with a packet cache of up to 4096KBPS (4M), and a maximum support of 16K-byte jumbo frames. The MAC address table reaches 16K, making video transmission smooth and without frame loss. It can be applied to telecommunications, mobile, Unicom, radio and television, electricity, intelligent transportation, finance, education, enterprises, energy, security, water conservancy and other industries. It is a solution for communication-level metropolitan and community broadband networks, and an ideal device for broadband access and optical fiber transmission.
Product Features:
● Ethernet Ports: Support AUTO-MDIX, auto-negotiation of speed and full/half duplex modes
● Fiber Ports: Available in SC/FC/ST/LC interfaces, supporting single/dual fiber transmission
● Backplane Bandwidth: 5.6Gbps
● Forwarding Rate: 4.16Mpps
● Latency: <7μs
● Buffer: 4MB, ensuring smooth video transmission with no packet loss or lag
● Jumbo Frames: Supports up to 16KB, compatible with various extended protocols
● MAC Address Table: 16K entries
● Energy Efficiency: Compliant with IEEE 802.3az (Energy Efficient Ethernet)
● Protocol Support: IPv6
● Surge Protection: 4KV surge protection on electrical ports for outdoor use
● LED Indicators: Comprehensive status lights for clear operation monitoring
● Power Protection: Reverse polarity protection
● Design: Metal housing, fanless
● Protection Rating: IP40
● Mounting Options: DIN-rail or wall-mount

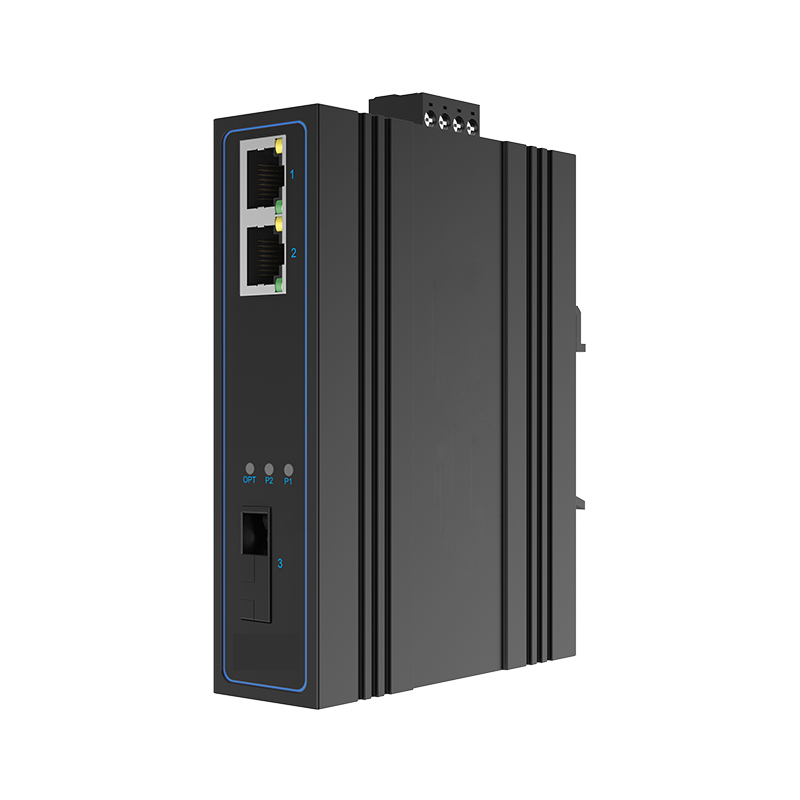

Model: SKP-IG9001SA2-SC
Port Configuration:
● Electrical Ports: 2×10/100/1000Base-T
● Optical Port: 1×1000Base-X (1*9/SFP)
Ethernet Standards:
IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az
IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
Switching Specifications:
● Packet Buffer: 4Mb
● Maximum Packet Length: 16K (Jumbo Frame)
● MAC Address Table: 16K
● Transmission Mode: Store-and-Forward, supports Full/Half Duplex
Performance Characteristics:
● Latency: <7μs
● Backplane Bandwidth: 5.6Gbps
● Forwarding Rate: 4.16Mbps
Indicator Lights:
● Total LEDs: 6
● Power Indicator: Solid on (normal operation)
● Electrical Port Indicators:
● Link/Act: Solid (connected), Flashing (data transmission)
● Speed: Solid (1000M), Off (10M/100M)
● Optical Port Indicator:
● Link/Act: Solid (connected), Flashing (data transmission)
Power Supply:
● Connection: Phoenix Terminal, DC Jack
● Redundant Power Input: DC 9-55V, DC 5-52V
● Overload Protection: Yes
● Reverse Polarity Protection: Supported
● Power Consumption: <6W (full load)
Physical Specifications:
● Protection Level: IP40
● Cooling: Natural convection, fanless design
● Dimensions: 140×118×43mm (L×W×H)
● Mounting: DIN Rail & Bracket
● Weight: Approx. 550g
Environmental Specifications:
● Storage Temperature: -40℃ to 85℃
● Operating Temperature: -20℃ to 75℃
● Operating Humidity :5% ~ 95% no condensation
● MTBF:100000H
