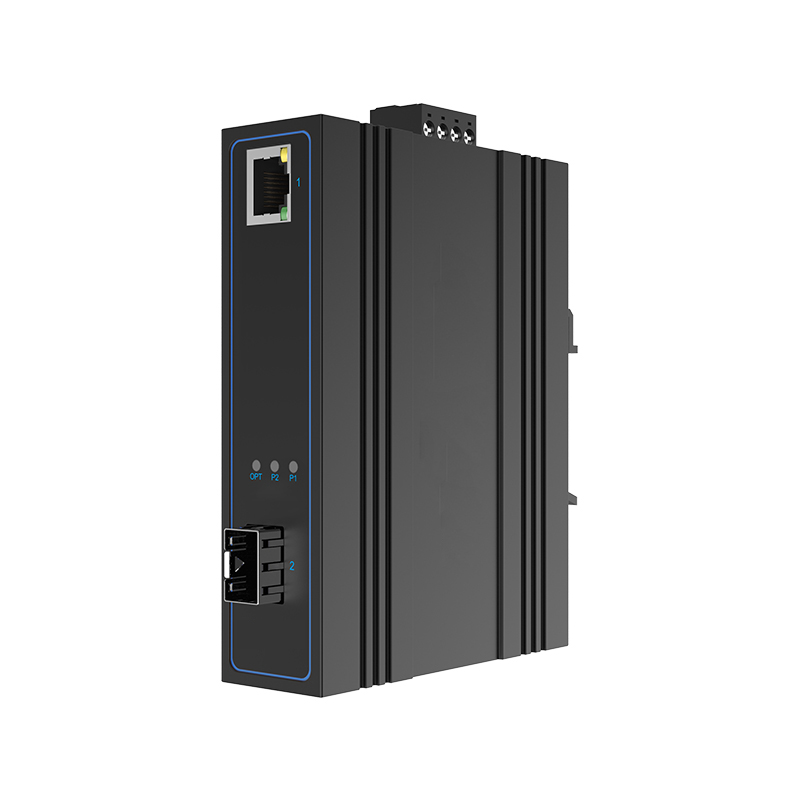

100M Gigabit SFP+ Single Lan Industrial Grade Converter
Product Overview:
Industrial-grade transceivers Robust, easy-to-use, secure switching infrastructure for harsh environments, industrial design, and industrial compliance; Its tools simplify the deployment, management and replacement of industrial networks; And it provides good network security on the basis of open standards.
Industrial switching equipment conforms to FCC/CE standards, with small size, no fan, low power consumption, high reliability and stability, easy maintenance and other characteristics, especially in the security data transmission has been optimized processing, packet cache up to 4096KBPS (4M), the maximum support for 6K bytes of giant frames, MAC address table is up to 8K, So that the video transmission does not get stuck without losing frames. Can be used in factory automation, telecommunications, mobile, Unicom, factory automation, video surveillance, intelligent transportation, education, enterprise, energy, security, water conservancy and other harsh environment deployment. All walks of life, it is the solution of communication grade metropolitan area and community broadband network, and is the ideal equipment for broadband access and optical fiber transmission.
Product Features:
Ethernet ports support AUTO-MDIX with auto-negotiation of speed and full/half duplex modes
Fiber ports available with SC/FC/ST/LC connectors, supporting single/dual fiber transmission
Total backplane bandwidth: 2.6Gbps
System forwarding rate: 4.16Mpps
Latency: <7μs
4Mb buffer ensures smooth video transmission without packet loss or lag
Supports 6K jumbo frames with compatibility for various extended protocols
8K MAC address table capacity
Compliant with IEEE 802.3az Energy Efficient Ethernet technology
Supports IPv6 protocol
4KV surge protection on electrical ports for reliable outdoor operation
Comprehensive status LEDs for clear operational visibility
Reverse polarity protection for power input
Aluminum alloy casing with fanless design
IP40 protection rating
DIN-rail/wall-mount installation options
Product Specification:
Port Configuration:
• Electrical Port: 1×10/100Base-T
• Optical Port: 1×100Base-X (1*9/SFP)
Standards Compliance:
IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3az,
802.3Qad, 802.3ah, 802.1X, 802.1Q, IEEE 1588
Switching Performance:
• Packet Buffer: 4Mb
• Maximum Packet Length: 6K
• MAC Address Table: 8K
• Transmission Mode: Store-and-forward, supports full/half duplex
Key Specifications:
• Latency: <7μs
• Backplane Bandwidth: 2.6Gbps
• Forwarding Rate: 4.16Mpps
• LED Indicators: 4 (including power)
Power Supply:
• Connection: Phoenix terminal/DC jack
• Redundant Input: DC 9-55V, DC 5-52V
• Overload Protection: Supported
• Reverse Polarity Protection: Supported
• Power Consumption: <6W (full load)
Physical Characteristics:
• Housing: Aluminum alloy, fanless
• Protection Rating: IP40
• Dimensions: 140×118×43mm (L×W×H)
• Weight: 550g
• Mounting: DIN-rail & bracket
Environmental Ratings:
• Operating Temperature: -30°C to +75°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 hours
