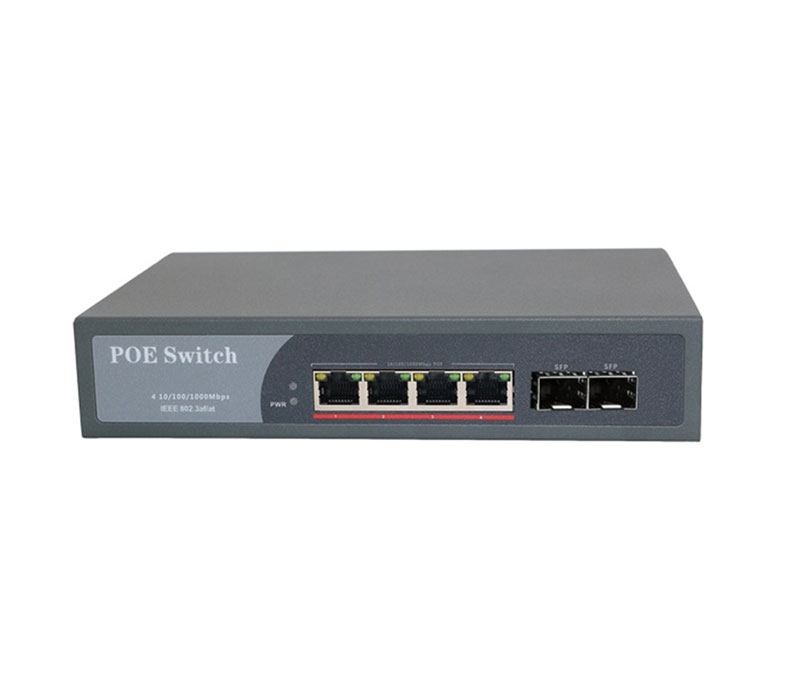

SKP-P9003B4-SFP 2*SFP+ 4*Lan PoE Switch
Port Configuration:
4×10/100/1000Mbps auto-negotiating PoE ports
2×Gigabit SFP fiber uplinks
Performance:
Switching capacity: 8.8Gbps (supports 8MP IP cameras at full load)
IEEE 802.3af/at compliant
Power & Protection:
150m extended PoE transmission
Per-port output: 15.4W/30W (af/at modes)
6kV surge protection
Built-in 48V 72W PSU
Physical:
Compact 200×120×40mm metal housing
1.0kg lightweight design
Chipset Architecture:
Realtek (Taiwan) + TI (USA) solution
Intelligent Features:
• Auto-sensing PoE for APs/cameras via Cat5e+
• Protocol-based power negotiation
• Plug-and-play deployment
• Per-port overload protection with auto-recovery
• Multi-mode LED status indicators
