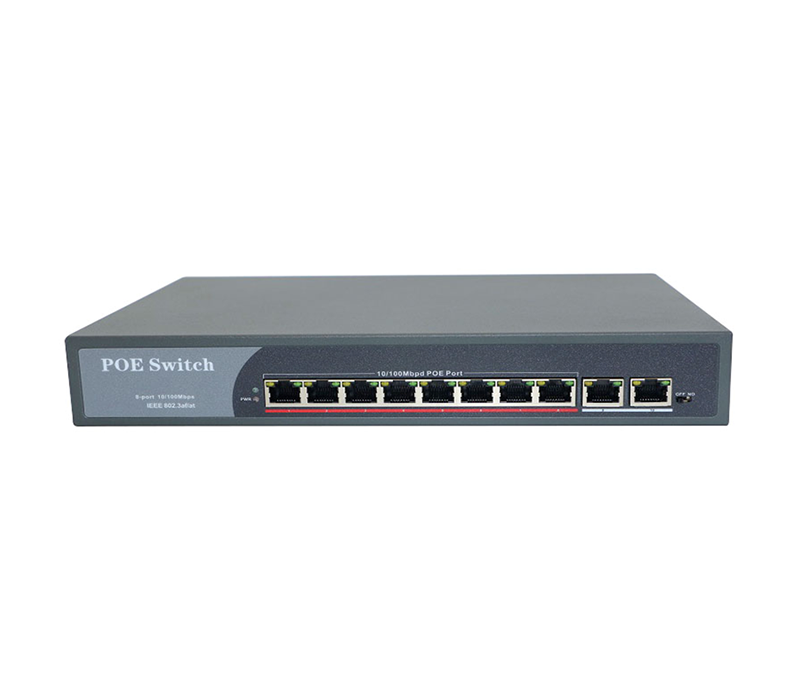

SKP-P228 Gigabit 10 Lan (8+2) POE Switch
8×10/100M auto-negotiation POE ports + 2×1000M uplink ports
Backplane bandwidth: 5.6Gbps | Supports full load for 4MP cameras
IEEE 802.3af POE protocol | Solution: Taiwan Realtek + U.S. TI
Data & power transmission: 150m/250m (DIP switch selectable)
Dimensions: 230×98×30mm
Max. POE output: 15.4W/30W per port | 6kV lightning protection
Built-in 48V 120W power supply
• Powers wireless APs and IP cameras via Cat5/Cat5e Ethernet
• IEEE 802.3af/at compliant (Protocol-based power delivery)
• Transmission distance up to 150 meters
• Plug-and-play operation - auto-detects and powers compatible devices
• Comprehensive and flexible PoE solution
• Per-port overload protection with auto-recovery
• LED indicators for real-time status monitoring
