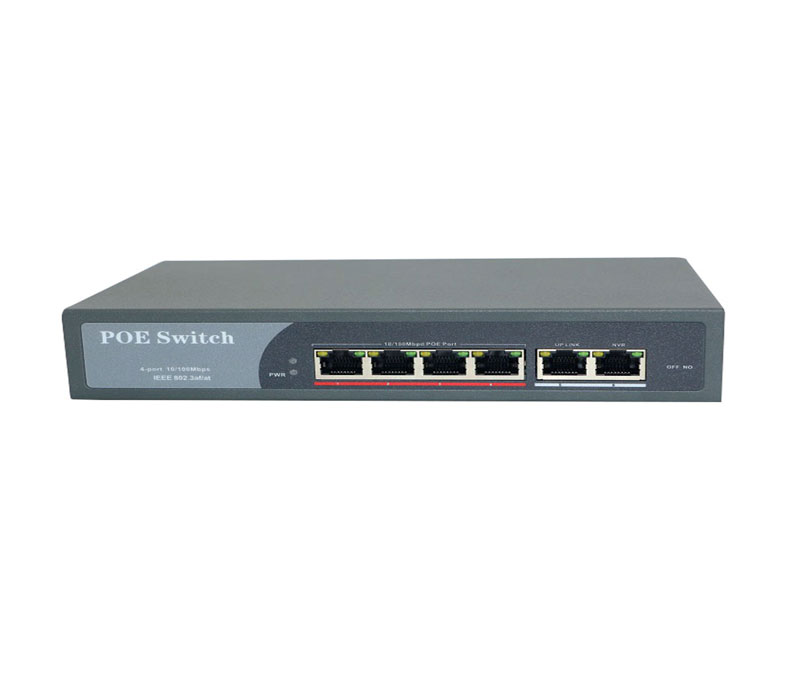

100M 6 Lan (4+2) POE Switch
4 x 10M/100M auto-negotiation POE ports + 2 x 100M cascade ports
Backplane bandwidth: 1.2Gbps | Supports full load for 3MP cameras
IEEE 802.3af POE protocol | Solution: Taiwan Realtek + U.S. TI
Data and power transmission distance: 150m/250m (DIP switch)
Dimensions: 200 x 120 x 40mm | Weight: 1.0kg
Max. POE output per port: 15.4W/30W | 6kV lightning protection
Built-in 48V 72W power supply
· Supports power supply for wireless access points (APs) and network surveillance cameras via Cat5 Ethernet
· Compliant with IEEE 802.3af/at power standard
· Transmission distance up to 150 meters
· Plug-and-play feature—power is automatically delivered to adaptive devices
· Comprehensive and flexible Power over Ethernet
· Single-port auto-protection with self-recovery function
· LED indicators for easy status monitoring
