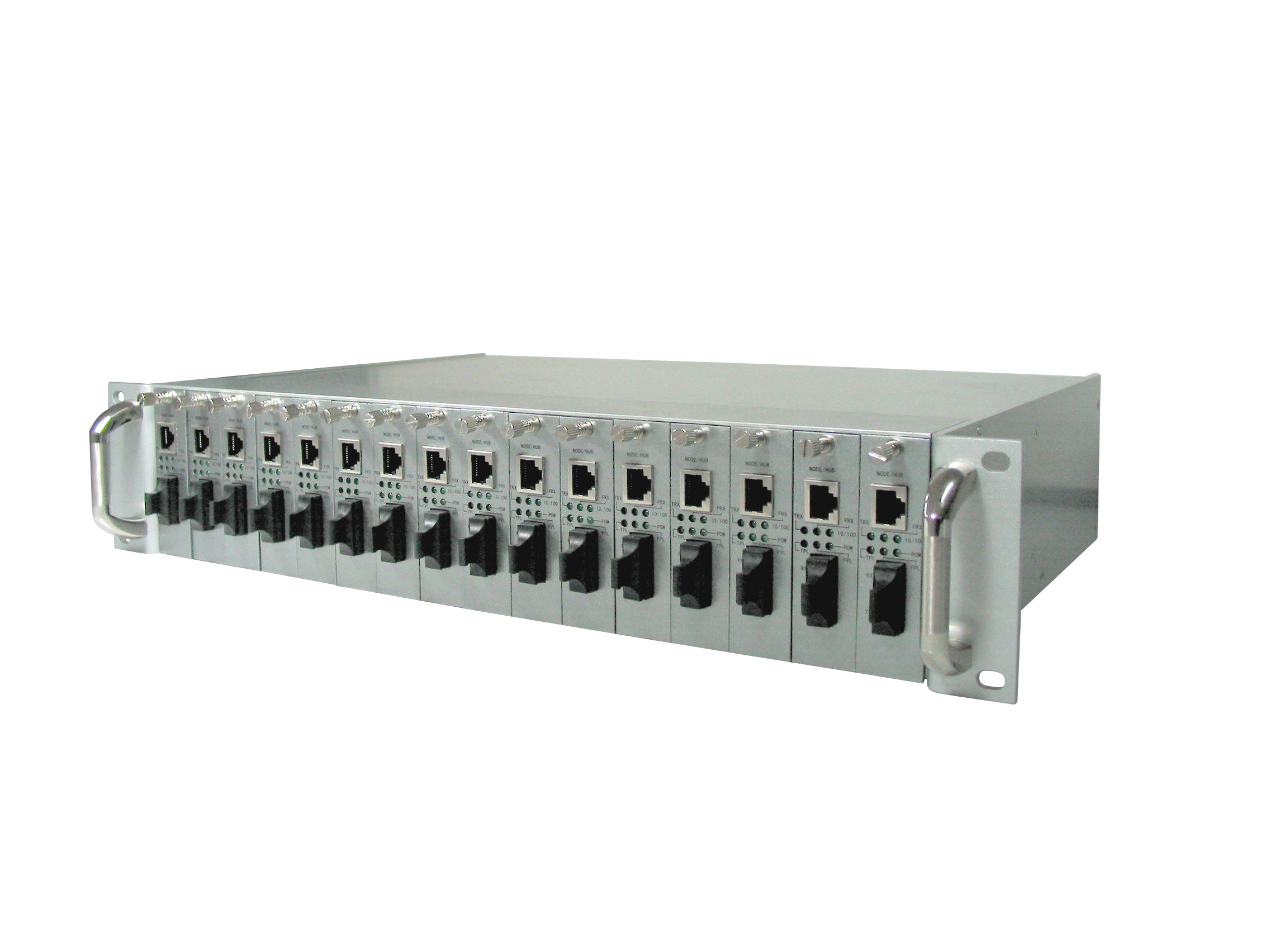

SKP-R16C-A FIber Optic Media Converter Rack
Product Overview:
The FIber Optic Media Converter Rack (2U) is an economical transceiver rack for computer rooms. It can be inserted with up to 16 different types of card-type transceivers of our company, and each module supports hot-swap function; it provides centralized power supply from the main and backup power supplies and can automatically switch to ensure uninterrupted operation of the system; it supports two power supply modes, AC220V and DC-48V, making the system suitable for a variety of working environments.
Product Specification:
Product: 16 slot rack
Number of slots: 16
Structure: 2U rack type
Power input: AC -- Voltage: AC85~265V, frequency: 50/60Hz DC -- voltage: DC-36~72V
Power output: DC5V 16A
Ripple: ≤100mv
Power configuration: Single or dual power supply hot backup
LED indicator: POWER
Max power: 80W
Operating temperature: -10~55℃
Working humidity: 5%~90%
Storage temperature: -40~70℃
Storage humidity :5%~90% no condensation
Chassis dimensions: 14 slots Chassis: 427 x 230 x 91mm
Converter size: Card type: 114×88×26mm
