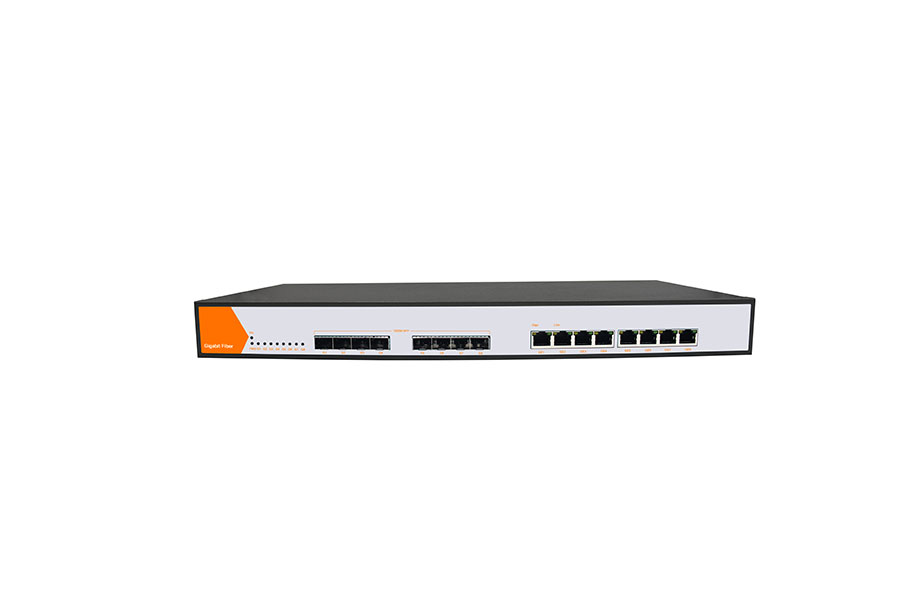

SKP-9003H8-SFP Gigabit FIber Optic Media Converter
Product Overview:
The SKP-9003H8-SFP is a high-performance Gigabit Ethernet switch that utilizes premium international brand chipsets to provide bidirectional conversion between 8×10/100/1000Base-TX Ethernet signals and 8×1000Base-FX optical signals, enabling long-distance Gigabit Ethernet transmission over fiber optic cables.
Fully compliant with IEEE 802.3 and other international communication standards, the KP-9003H8-SFP maintains complete interoperability with networking equipment from various brands including switches and routers.
This cost-effective access layer solution is ideal for:
• Enterprise and campus networks (high-speed access)
• HD surveillance systems (compatible with most IP cameras)
• Safe City projects and traffic monitoring applications
Product Features:
● Adopts international brand chip, stable and reliable performance
● Provides 8 10/100/1000Base-Tx electrical ports
● Provides 8 1000Base-Fx optical ports
● 10/100/1000Base-Tx adaptive
● Full/half duplex adaptive
● Supports cross/through line self-adaptation
● SFP optical module (Optional)
● Support multi-mode, single-mode cable
● Supports dual-fiber, single-fiber bidirectional transmission
● Can support photoelectric mutual control (LFP) function (optional)
● External power adapter, support 100 to 240V wide input
● Plug and play, easy maintenance
Product Specification:
Model: SKP-9003H8-SFP
Protocol Compliance:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX/1000Base-FX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-SX/LX
• IEEE 802.3x Flow Control
Copper Ports:
• 8× RJ45 ports
• 10/100/1000Base-TX auto-negotiation
• Auto MDI/MDI-X
• 100m maximum transmission distance
Fiber Ports:
• 8× 1000Base-FX interfaces
• SFP module slots (LC interface)
Refer to SFP optical module specifications
Power Supply:
• AC input: 100-240V, 50/60Hz
LED Indicators:
• PWR: Power status
• FDX: Full duplex mode
• Fiber ports:
FX Link/Act (Link/Activity)
FX1000/FX100 (Speed indicators)
• Ethernet ports:
TX Link/Act (Link status)
• LFP: Link Fault Pass-Through (specific models)
Environmental Specifications:
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 85°C
• Humidity: 5% to 95% non-condensing
