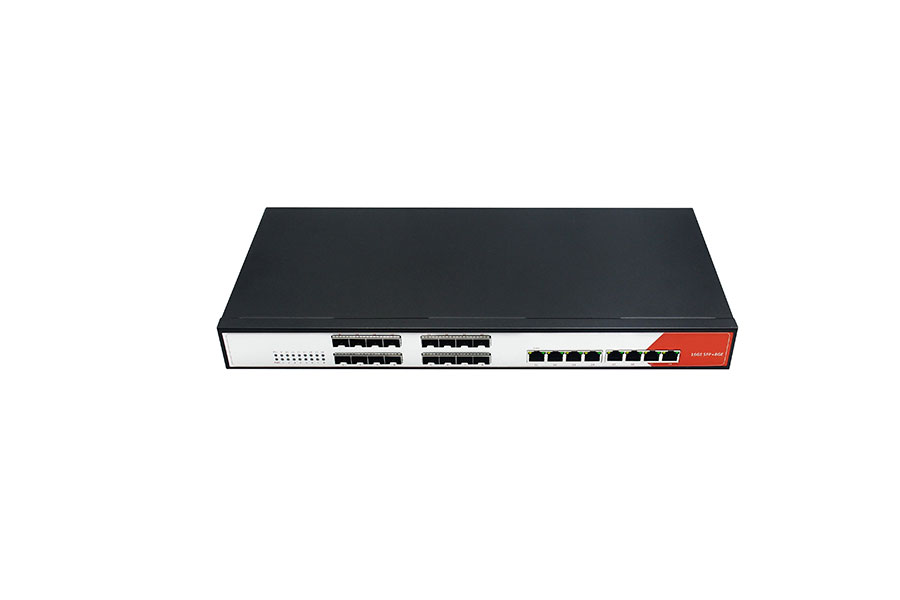

SKP-9003P8-SFP Gigabit FIber Optic Media Converter
Product Overview:
The SKP-9003P8-SFP is a Gigabit Ethernet switch that utilizes high-performance chipsets from internationally renowned brands to provide bidirectional conversion between 8×10/100/1000Base-TX Ethernet signals and 16×1000Base-FX optical signals, enabling long-distance Gigabit Ethernet transmission over fiber optic cables.
Compliant with IEEE 802.3 and other international communication standards, the SKP-9003P8-SFP is fully compatible with networking equipment from various brands, including switches and routers.
This cost-effective access-layer networking device is widely deployed in:
✔ Enterprise & campus networks (high-speed access)
✔ HD surveillance systems (supports most mainstream IP cameras)
✔ Safe City & traffic monitoring (reliable video transmission)
Product Features:
● Adopts international brand chip, stable and reliable performance
● Provides 8 10/100/1000Base-Tx electrical ports
● Provides 16 1000Base-Fx optical ports
●10/100/1000Base-Tx adaptive
● Full/half duplex adaptive
● Supports cross/through line self-adaptation
● SFP optical module (Optional)
● Support multi-mode, single-mode cable
● Supports dual-fiber, single-fiber bidirectional transmission
● Can support photoelectric mutual control (LFP) function (optional)
● External power adapter, support 100 to 240V wide input
● Plug and play, easy maintenance
Product Specification:
Model: SKP-9003P8-SFP
Protocol Compliance:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX/1000Base-FX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-SX/LX
• IEEE 802.3x Flow Control
Copper Ports:
• 8× RJ45 ports
• 10/100/1000Base-TX auto-negotiation
• Auto MDI/MDI-X
• 100m maximum distance
Fiber Ports:
• 16× 1000Base-FX interfaces
• SFP module slots (LC interface)
Refer to SFP module specifications
Power Supply:
• AC input: 100-240V, 50/60Hz
LED Indicators:
• PWR: Power status
• FDX: Full duplex
• Fiber ports:
FX Link/Act (Link/Activity)
FX1000/FX100 (Speed indicators)
• Copper ports:
TX Link/Act (Link status)
• LFP: Link Fault Pass-Through (specific models)
Environmental Specifications:
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 85°C
• Humidity: 5% to 95% non-condensing
