Product Overview:

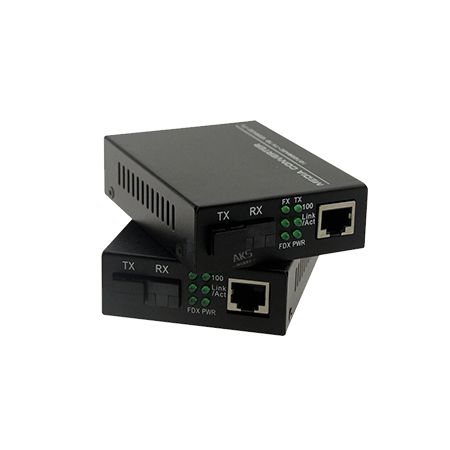

The SKP-9001SA1-SC Fast Ethernet Media Converter employs high-performance chipsets from internationally renowned brands to provide bidirectional conversion between 1×10/100Base-TX Ethernet signals and 1×100Base-FX optical signals, enabling long-distance Fast Ethernet transmission over fiber optic cables.
Compliant with IEEE 802.3 and other international communication standards, the SKP-9001SA1-SC maintains full compatibility with networking equipment from various brands including switches and routers.
This cost-effective access network device is widely deployed in:
●Enterprise networks
●Campus networks for high-speed access
●Supports majority of HD cameras on the market
●Ideal for Safe City projects and road surveillance systems
Product Features:
● Adopts international brand chip, stable and reliable performance
● Provides 1 10/100Base-Tx electrical port
● Provides one 100Base-Fx optical port
● 10/100Base-Tx adaptive
● Full/half duplex adaptive
● Supports cross/through line self-adaptation
● Supports DC5/12V power input
● SC ports are supported. FC/ST ports are optional
● SFP optical module (Optional)
● Support multi-mode, single-mode cable
● Supports dual-fiber, single-fiber bidirectional transmission
● Can support photoelectric mutual control (LFP) function (optional)
● Supports desktop installation, wall mounting, and 14-slot rack
● External power adapter, support 100 to 240V wide input
● Plug and play, easy maintenance
Model: SKP-9001SA1-SC
Protocol Support:
✓ IEEE 802.3 10Base-T
✓ IEEE 802.3u 100Base-TX/FX
✓ IEEE 802.3x Flow Control
Ethernet Interface:
• 1× RJ45 port
• 10/100Base-TX auto-negotiation
• Auto MDI/MDI-X
• 100m transmission distance
Fiber Interface:
• 1× 100Base-FX port
• Standard 1x9 module with SC connector (FC/ST optional)
Multimode: 1310nm, 2km
Singlemode:
• 1310nm: 20/40/60km
• 1550nm: 80/100/120km
• Optional SFP module (LC interface)
See SFP module specifications
Power Supply:
• AC input: 100-240V, 50/60Hz
• DC output: 5V (12V optional)
Status Indicators:
• PWR: Power
• FDX: Full duplex
• Fiber port:
FX Link/Act (Link/Activity)
FX 100 (Speed)
• Ethernet port:
TX Link/Act (Link/Activity)
TX 100 (Speed)
• LFP: Link Fault Pass-Through (specific models)
Mechanical Design:
• External desktop unit
• Metal housing
• Dimensions: 94×71×26mm (W×D×H)
Environmental Specifications:
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 85°C
• Humidity: 5% to 95% (non-condensing)
