SKP-K9001SAI-SC 100M FIber Optic Media Converter
Product Overview:
his 100Mbps fiber media converter utilizes internationally renowned brand chips to achieve bidirectional conversion between 1×10/100Base-TX Ethernet signal and 1×100Base-FX optical signal, enabling long-distance Fast Ethernet transmission over fiber.
Compliant with IEEE 802.3 and other international communication standards, it ensures full compatibility with network equipment from other brands, such as switches and routers. As a cost-effective access-layer networking device, it is widely used in:
✔ Enterprise & campus networks (high-speed access)
✔ HD surveillance systems (supports most mainstream IP cameras)
✔ Safe City & traffic monitoring (reliable video transmission)
Compact Design for Flexible Deployment:

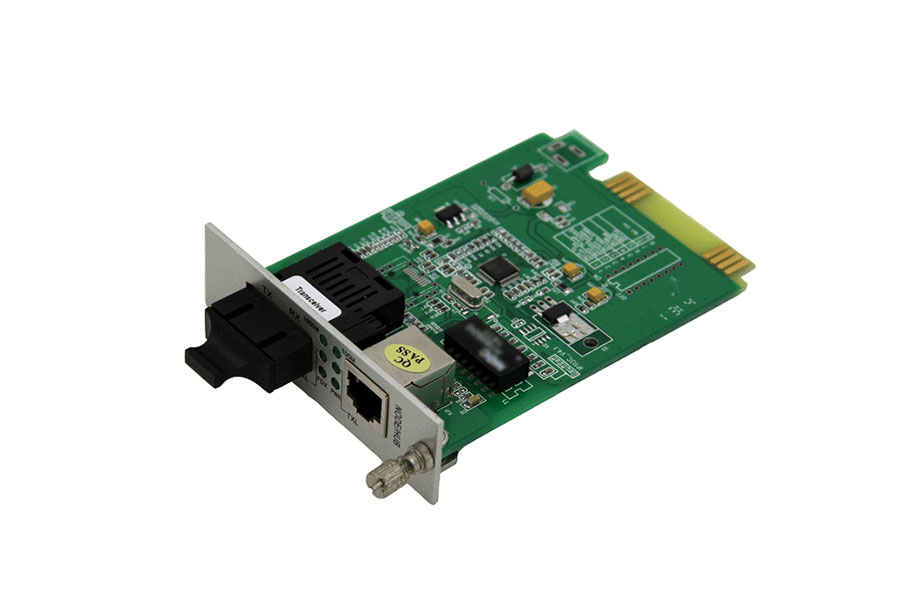

✓ Card-type module – Can be used standalone in a single-slot metal enclosure (desktop mode)
✓ Rack-mountable – Supports 16-slot chassis for centralized management
Key Advantages:
• Stable & reliable performance
• Plug-and-play installation
• Industrial-grade durability
• Multi-scenario applications
Product Features:
✔ Premium International Brand Chipset
✔ 1×10/100Base-TX Copper Port
✔ 1×100Base-FX Fiber Port
✔ 10/100M Auto-Negotiation
✔ Full/Half Duplex Auto-Adaptation
✔ Auto MDI/MDI-X
✔ 5V DC Power Input
✔ Flexible Fiber Connectivity
✔ Multi-mode & Single-mode Fiber Compatible
✔ Dual-fiber & Single-fiber BiDi Transmission
✔ Versatile Installation - Fits single-slot metal case or 16-slot chassis
✔ Plug-and-Play
Product Specification:
Model: SKP-K9001SAI-SC
Protocol Compliance:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX & 100Base-FX
• IEEE 802.3x Flow Control
Ethernet Interface:
• 1× RJ45 port
• 10/100Base-TX auto-negotiation
• Auto MDI/MDI-X crossover
• 100m maximum transmission distance
Fiber Optic Interface:
• 1× 100Base-FX port
• Default 1x9 optical module with SC connector (FC/ST optional)
Multimode fiber: 1310nm, 2km reach
Single-mode fiber options:
• 1310nm: 20/40/60km
• 1550nm: 80/100/120km
• Optional SFP module with LC interface
(Refer to SFP optical module specifications)
Power Supply:
• 5V DC input
LED Indicators:
• PWR: Power status
• FDX: Full-duplex mode
• Fiber Port:
FX Link/Act (Link status)
FX 100 (Speed indicator)
• Ethernet Port:
TX Link/Act (Link status)
TX 100 (Speed indicator)
• LFP: Link Fault Pass-Through (specific models)
Mechanical Specifications:
• Card-type: Aluminum alloy panel (114×88×26mm)
• Desktop module: Aluminum alloy housing (156×128×32mm)
Environmental Conditions:
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 85°C
• Operating humidity: 5% to 95% (non-condensing)
