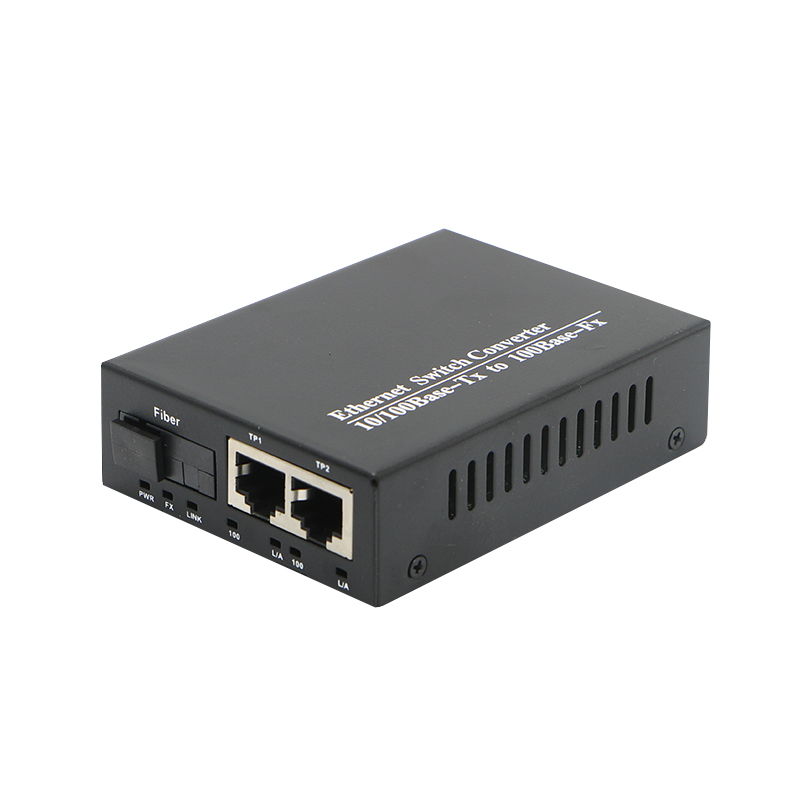

SKP-9001SA2-SC 100M FIber Optic Media Converter
Product Overview:
The SKP-9001SA2-SC Fast Ethernet Media Converter utilizes high-quality ICs from internationally renowned brands to provide bidirectional conversion between 2 channels of 10/100Base-TX Ethernet signals and 1 channel of 100Base-FX optical signals, enabling long-distance Fast Ethernet transmission over fiber optic cables.
Compliant with IEEE 802.3 and other international communication standards, the P-9001SA2-SC maintains full compatibility with networking equipment from other brands including switches and routers.
This cost-effective access network device is widely deployed in:
●Enterprise networks
●Campus networks for high-speed access
●Supports majority of HD cameras on the market
●Ideal for Safe City projects and road surveillance systems
Design Features:
●Compact metal casing design
●Supports both desktop and wall-mount installation
●Rack-mountable in 14-slot chassis with centralized power supply
●Equipped with stable and secure power adapter
●Wide voltage input: 100-240V AC
●Output: 5V 1A DC
Key Advantages:
●Industrial-grade reliability with premium components
●Flexible deployment options for various scenarios
●Energy-efficient operation
●Simplified installation and maintenance
●Universal compatibility with major network equipment
Product Features:
✓ Premium International Brand Chipset
✓ 2×10/100Base-TX Copper Ports
✓ 1×100Base-FX Fiber Port
✓ 10/100M Auto-Negotiation
✓ Full/Half Duplex Auto-Adaptation
✓ Auto MDI/MDI-X
✓ Dual Power Input Options
✓ Flexible Fiber Connectivity )
✓ Multi-mode & Single-mode Fiber Support
✓ Dual-fiber & Single-fiber BiDi Transmission
✓ Optional LFP (Link Fault Pass-Through)
✓ Versatile Installation Options - Desktop, wall-mount, or 14-slot rack mounting
✓ Universal Power Adapter - 100-240V wide input range
✓ Plug-and-Play Operation - Simple installation and maintenance
Product Specification:
Model: SKP-9001SA2-SC
Protocol Support:
✓ IEEE 802.3 10Base-T
✓ IEEE 802.3u 100Base-TX & 100Base-FX
✓ IEEE 802.3x Flow Control
Ethernet Ports:
• 2× RJ45 connectors
• Auto-negotiation for 10/100Base-TX
• Auto MDI/MDI-X detection
• 100m maximum transmission distance
Fiber Optic Interface:
• 1× 100Base-FX port
• Default 1x9 optical module with SC connector (FC/ST optional)
Multimode fiber: 1310nm wavelength, 2km reach
Single-mode fiber options:
• 1310nm: 20/40/60km reach
• 1550nm: 80/100/120km reach
• Optional SFP module with LC interface
(See separate SFP optical module specifications)
Power Specifications:
• Wide-range AC input: 100-240V, 50/60Hz
• DC output: 5V standard (12V optional)
Status Indicators:
• PWR: Power status LED
• FDX: Full-duplex mode indicator
• Fiber Port LEDs:
FX Link/Act (Connection status)
FX 100 (Speed indicator)
• Ethernet Port LEDs:
TX Link/Act (Connection status)
TX 100 (Speed indicator)
• LFP: Link Fault Pass-Through indicator (on specified models)
Physical Characteristics:
• External desktop form factor
• Durable metal housing
• Compact dimensions: 94mm(W) × 71mm(D) × 26mm(H)
Environmental Conditions:
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 85°C
• Operating humidity: 5% to 95% (non-condensing)
