Product Overview:

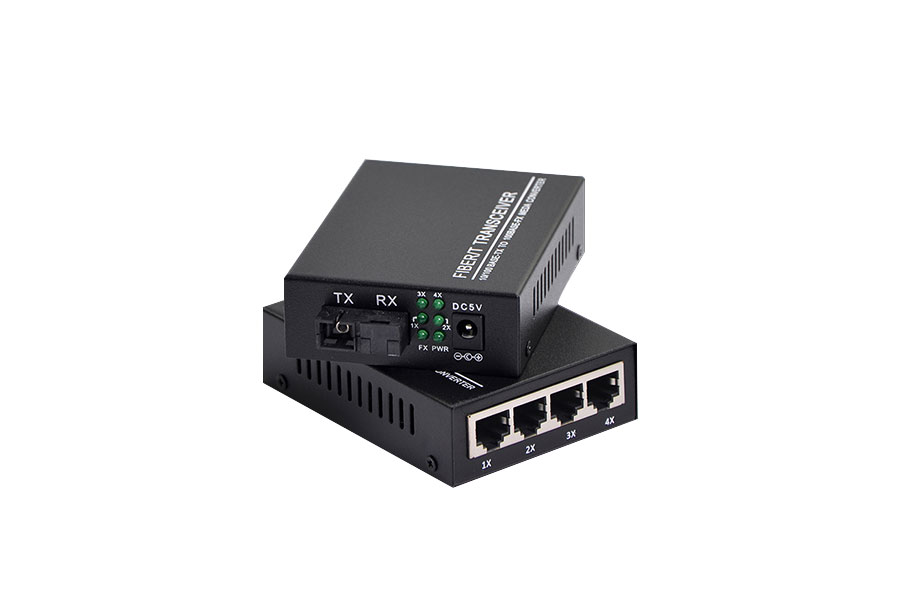

The SKP-9001SA4-SC is a cost-effective networking device that utilizes internationally renowned brand chips to convert between four channels of 10/100Base-TX Ethernet signals and one channel of 100Base-FX optical signals, enabling long-distance Fast Ethernet transmission over fiber optics.
Compliant with international communication standards such as IEEE 802.3, the SKP-9001SA4-SC is fully compatible with networking equipment from other brands, including switches and routers. It is widely deployed in enterprise and campus networks for high-speed access applications.Additionally, the SKP-9001SA4-SC supports most high-definition (HD) cameras on the market, making it ideal for surveillance systems such as Safe City programs and road monitoring networks.
Power Supply:
●Equipped with a stable and secure power adapter.
●Input: 100–240V AC
●Output: 5V 1A DC
Product Features:
✔ Features high-quality IC from international brand for stable and reliable performance
✔ 4×10/100Base-TX RJ45 ports
✔ 1×100Base-FX fiber port
✔ 10/100M auto-negotiation
✔ Full/half duplex auto-adaptation
✔ Auto MDI/MDI-X crossover detection
✔ Supports 5V/12V DC power input
✔ SC connector (FC/ST optional)
✔ Compatible with SFP modules (optional)
✔ Supports both multi-mode and single-mode fiber
✔ Supports dual-fiber and single-fiber Bi-Directional transmission
✔ Optional Link Fault Pass-Through (LFP) function
✔ External power adapter with 100-240V wide range input
✔ Plug-and-play operation for easy maintenance
Product Specification:
Model: SKP-9001SA4-SC
Protocol Support:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX, 100Base-FX
• IEEE 802.3x Flow Control
Lan:
• 4× RJ45 ports
• 10/100Base-TX auto-negotiation
• Auto MDI/MDI-X crossover
• 100m maximum transmission distance
Fiber Port:
• 1× fiber optic interface
• 100Base-FX speed
• Default 1x9 module with SC connector (FC/ST optional)
Multimode fiber: 1310nm, 2km
Single-mode fiber:
1310nm: 20/40/60km
1550nm: 80/100/120km
• Optional SFP module with LC connector
(Refer to our SFP optical module specifications)
Power Supply:
• AC input: 100-240V, 50/60Hz
• DC output: 5V (12V optional)
LED Indicators:
• PWR: Power status
• FDX: Full-duplex mode
• Fiber port:
FX Link/Act (Connection)
FX 100 (Speed)
• Copper ports:
TX Link/Act (Connection)
TX 100 (Speed)
• LFP: Link Fault Pass-Through (specific models)
Mechanical Design:
• External desktop type
• Metal housing
• Dimensions: 94×71×26mm
Operating Environment:
• Operating temperature: 0~50℃
• Storage temperature: -20~85℃
• Operating humidity: 5%~95% non-condensing
