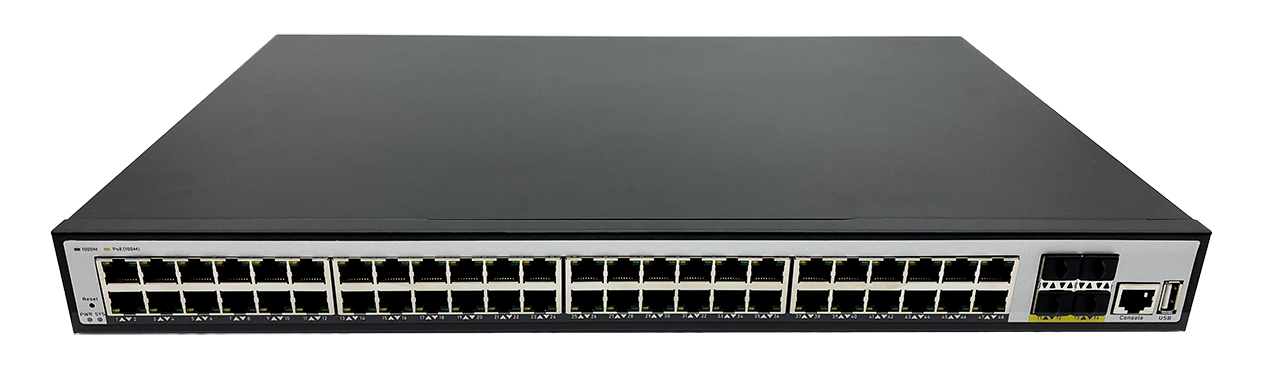

48-Port Gigabit Ethernet Switch with 4*10G SFP+Uplink and 1 Console Management Port
Switching Capacity: 598Gbps
Management Type: L3 Management
Packet Forwarding Rate: 200Mpps
Input Voltage: AC 100-240V 50/60Hz
MAC Address Table: 32K
Dimensions: 44029045mm
Model: SS-MNTG-F4R48-4T
Weight: 4.0kg
Product Overview
The SS-MNTG-F4R48-4T series is a 10G uplink Layer 3 managed Ethernet switch, featuring 48 Gigabit ports and 4 10G SFP+ uplink slots, with all ports supporting line-rate forwarding. Designed for environments requiring high-speed data transfer, such as schools, campuses, hotels, banks, hospitals, tourist attractions, supermarkets, factory dormitories, and SMBs, this switch offers high performance and easy maintenance.
The SS-MNTG-F4R48-4T supports Layer 3 management, IPv4/IPv6 static/dynamic routing, comprehensive security mechanisms, advanced ACL/QoS policies, and rich VLAN functionality for simplified management. It also supports network redundancy protocols like STP/RSTP/MSTP (<50ms) and ERPS (<20ms) to enhance link backup and network reliability, ensuring uninterrupted communication during network failures. Through Web, CLI, SNMP, and Telnet management, users can configure port traffic control, VLAN划分, QoS, LACP, IGMP, and DHCP to meet diverse application needs.
Product Features
4 Uplink SFP+ Ports: Supports long-distance fiber transmission, simplifying ring/chain network deployment and expansion.
Full Gigabit High-Speed Transmission: 10G uplink ensures stable, high-bandwidth data transfer with per-port rate and traffic control.
Enterprise-Grade Switching Chip: High backplane capacity and large buffer reduce network congestion.
Auto MDI/MDI-X: Supports MAC address auto-learning/updating and port auto-flipping.
Enhanced Protection: Ports feature 4KV surge (lightning) protection, short-circuit, and overload protection for safe operation.
Durable Design: Robust steel casing shields against interference, enhances heat dissipation, and ensures long-lasting, rust-proof performance.
Software Features
Advanced Routing and Management:
Supports 128 IPv4/IPv6 static/dynamic routing entries, ARP protocol (up to 1024 entries), and IPv4/IPv6 management.
Flexible port bandwidth and traffic configuration with SFP+ DDMI digital diagnostics for precise network management.
Supports IEEE 802.1Q VLAN, protocol VLAN, and QinQ VLAN for flexible VLAN划分.
QoS support with port-based, 802.1P-based, and DSCP-based priority modes, and Equ, SP, WRR, SP+WRR queue scheduling algorithms.
ACL support for packet filtering and flexible security access control policies.
IGMP V1/V2/V3 and IGMP Snooping V1/V2/V3 for multi-terminal HD video surveillance and conferencing.
STP/RSTP/MSTP and ERPS (<20ms) for loop elimination and link backup.
Static and dynamic link aggregation (LACP) for increased bandwidth, load balancing, and link reliability.
Comprehensive Security:
Web interface user authentication.
CPU protection against large data flow attacks.
802.1x authentication, remote RADIUS, and TACACS+ authentication.
Hardware-based IP ACL, MAC ACL, port filtering, MAC address binding, and port-based IP+MAC+VLAN+port multi-binding.
DHCP Snooping V1/V2/V3, port isolation, and broadcast storm suppression.
Convenient Maintenance:
Supports Web, CLI (Console, Telnet), and SNMP (V1/V2c/V3) management.
Secure management via HTTP/HTTPS and SSH.
Firmware updates/upgrades via HTTP/TFTP, configuration file upload/download, and one-click system restore.
RMON, system logs, and port traffic statistics for network optimization.
LLDP for easy link status monitoring.
CPU/memory monitoring, Ping detection, and cable diagnostics.
Technical Specifications
Model: SS-MNTG-F4R48-4T
Port Features:
Fixed Ports:
Downlink: 48x 10/100/1000Base-T RJ45 ports
Uplink: 4x 1/10G SFP+ slots
Management: 1x Console port (115200, 8, N, 1)
Port Characteristics:
Ports 1-48: 10/100/1000M auto-negotiation, full/half-duplex, MDI/MDI-X auto-sensing
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP (≤250m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
SFP Ports:
Gigabit SFP fiber interface (modules sold separately; options include single/multi-mode, single/dual-fiber, LC/SC connectors)
Fiber Cable: Multi-mode
