Technical Specifications
Switching Capacity: 2.8Gbps
Management Type: Non-Managed
Packet Forwarding Rate: 2Mpps
Input Voltage: AC100-240V 50/60Hz, 120W
MAC Address Table: 2K
Dimensions: 20012045mm
Model: SS-PM-R10
Product Overview

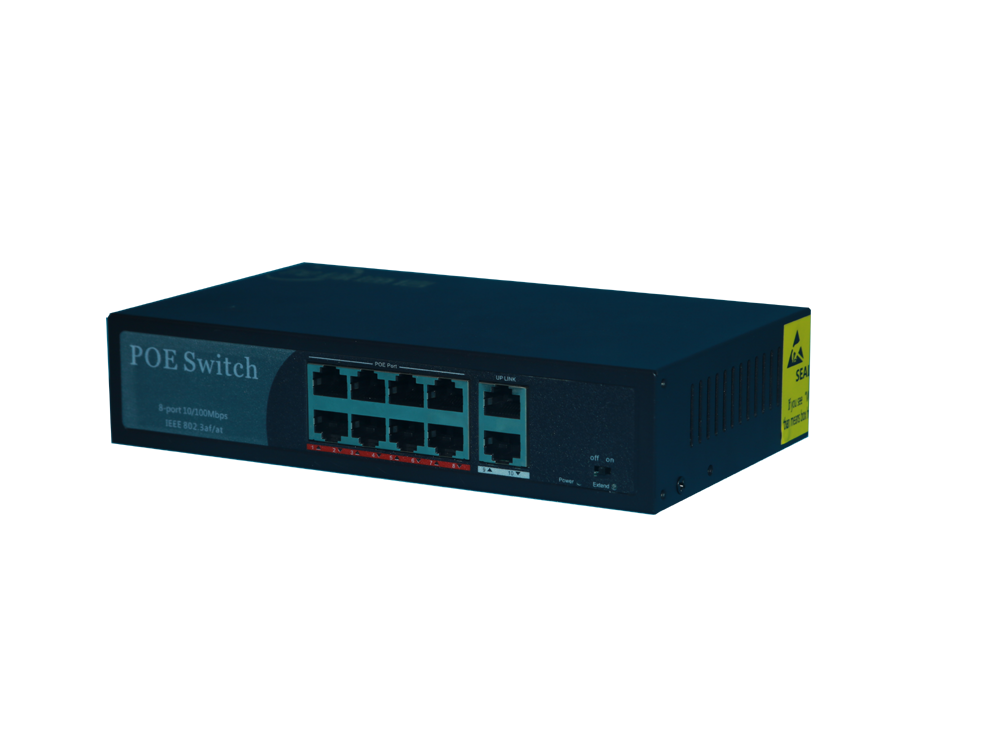

The SS-PM-R10 Fast Ethernet POE Switch features 8 Fast Ethernet POE ports and 2 Fast Ethernet uplink ports. Built with internationally renowned chips, it is an economical and compact switch widely used in small networks and surveillance systems for homes and businesses.
It supports IEEE802.3af and IEEE802.3at POE standards, delivering up to 30W of power through a single network cable to POE devices such as network cameras, wireless APs, and VoIP phones. This makes it particularly suitable for scenarios where power wiring is inconvenient.
The unique DIP switch design offers one-click VLAN isolation mode and one-click long-distance transmission mode. In VLAN mode, ports 1~8 are isolated from each other, preventing DHCP spoofing and suppressing broadcast storms to enhance network security. In long-distance transmission mode, the ports support 10M full-duplex transmission, extending the maximum distance to 250 meters, breaking the 100-meter limit of traditional Ethernet cables and expanding application scenarios.
Product Features
High-Quality Chip: Utilizes internationally renowned chips for stable and reliable performance.
Port Configuration: 8 x 10/100Base-T POE ports and 2 x 10/100Base-T uplink ports to meet diverse networking needs.
POE Support: Complies with IEEE802.3af/at POE standards, providing up to 30W of power per port for connected devices.
High-Speed Switching: 2.8G backplane bandwidth ensures fast and smooth data exchange.
One-Click Functions: Supports one-click VLAN and long-distance transmission to adapt to various application scenarios.
Built-in Power Supply: Features a stable and reliable built-in power supply with a maximum output of 120W.
Safety Protection: Equipped with lightning protection, surge protection, short-circuit protection, and over/under-voltage protection for enhanced safety.
Compact Design: Sleek and compact design, plug-and-play, and easy maintenance.
Technical Specifications
| Item | Parameters |
|---|---|
| Ports |
8 x 10/100Base-T PoE ports 2 x 10/100Base-T uplink ports |
| Switching Performance |
Backplane Bandwidth: 2.8G MAC Address Table: 2K Supports Store-and-Forward |
| Standard Protocols |
IEEE802.3, IEEE802.3i 10Base-T, IEEE802.3u 100Base-T, IEEE802.3x Flow Control, IEEE802.1q VLAN, IEEE802.3af PoE, IEEE802.3at PoE+ |
| Transmission Media & Distance | Cat5e Cable: Normal Mode - 100m; Long-Distance Mode - 250m |
| PoE |
PoE Ports: 8 DC48V, Max. 30W per port Power Pairs: 1/2 (+), 3/6 (-) |
| Power Supply |
AC100~240V 50/60Hz input Total Power: 120W |
| Indicators |
P: Power indicator, S: Long-Distance Mode indicator, V: VLAN Mode indicator, POE: PoE indicators for ports 1~8, LINK: Link indicators for ports 1~10 |
| Operating Environment |
Operating Temperature: -10°C to +55°C Storage Temperature: -40°C to +70°C Operating Humidity: 10~90% non-condensing Storage Humidity: 5~90% non-condensing |
| Physical Characteristics |
Dimensions (W x D x H): 200 x 120 x 44mm Weight: 1kg |
Package Contents
| Item Name | Quantity | Unit |
|---|---|---|
| 10-Port Fast Ethernet POE Switch | 1 | Unit |
| AC Power Cord | 1 | Piece |
| User Manual | 1 | Copy |
| Quick Start Guide | 1 | Copy |
| Warranty Card & Certificate | 1 |
Copy |
