Features:
◆Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
◆Port1 to Port24 compatible with IEEE802.3af/at standard
◆Maximum power of each port is 15.4W/30W, 400W for total
◆24x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps RJ45 uplink ports，2x 10/100 /1000Mbps SFP fiber uplink ports
◆Meets the standards of the IEEE 802.3af/ IEEE 802.3 10i and IEEE 802.3u standard
◆The packet forwarding speed of the wire-speed port is 1.488Mbps
◆Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
◆All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
◆1U Rack mounted design, easy to install and use
◆ Automatic adjustment, plug and play, no need software and protocol conversion
Ordering Information:

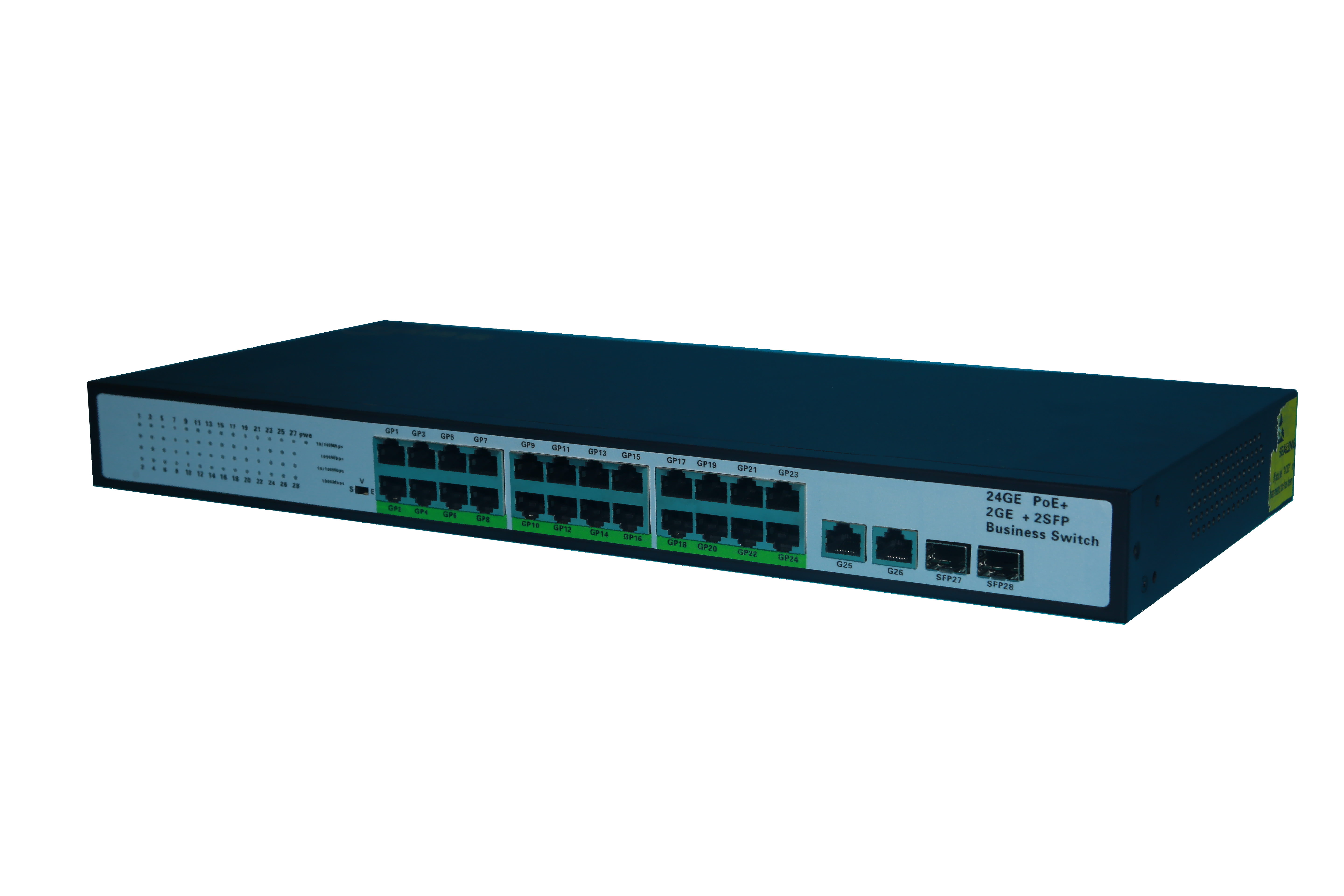

Product Model: 24PGE2GE2SFP
Product Description: 26-Port gigabit PoE switch with 24 gigabit PoE ports and 2x 10/100 /1000Mbps RJ45 uplink ports ，2x gigabit SFP fiber ports; port1 to port24 supports POE IEEE 802.3af/at international standard, each port power is 15.4W/30W, the total power is 400W
Ordering Note: The even number port is end-span (1/2+, 3/6- line pair) power supply, the odd number port is mid-span(4/5+, 7/8- line pair) power supply
Accessories in the Package:
|
Packing Lists |
28-Port Gigabit PoE Switch with 24 Gigabit PoE Ports 15.4W/30W |
|
Power Adapter Cable |
|
|
Brackets and Screws |
|
|
User Guide |
|
|
Warranty Card |
Technical parameter list
|
Product Name |
24-Port full gigabit PoE switch |
|
Model |
24PGE2GE2SFP |
|
Connector Type |
24x 10/100/1000M copper RJ45 Ports (All ports support MDI/MDIX auto sensing) Port 1-24: PoE port, max PoE output for each port is 30W. 2x 10/100 /1000Mbps RJ45 uplink ports 17-18 .2x 10/100/1000M SFP optical port 19-20. |
|
Network Media |
100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
|
Bandwidth |
56G |
|
MAC |
8K |
|
Network |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at |
|
Power Supply |
Input: AC100-240V, 50-60Hz |
|
PoE Ports |
24*PoE Ports |
|
PoE Port Power |
Max 30W |
|
PoE Standard |
IEEE802.3af/at |
|
Working Environment |
Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
|
Certification |
CE Mark ,commercial CE/LVD EN60950 |
|
Radiation |
CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 （CISPR 22）， Class B |
|
Power Supply Type |
1,2(+)/3,6(-) (Default) ; 45(+),78(-) (Option) |
|
Product Size |
440mm*200mm*44mm,5kg |
|
Warranty |
3year |
