Model Number:SS-1G4WS33OC
Ports:≤5
Transmission Rate:1.25Gbps
Function:QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Ethernet Port:4*10/100/1000M RJ45 port
Fiber Port:1*1000M Optical Fiber Port
Packet Forwarding:12.96Mpps
Power Input:External power DC 5V 2A
Operating Temperature/Humidity:-15~+65°C;5%~90% RH Non coagulation
Product size (L*W*H):178mm*98mm*25mm
Packing size (L*W*H):230mm*125mm*55mm
N.W/G.W(kg):0.45kg/0.62kg
Warranty:2 Years
Certification:RoHS/CE/FCC
Specifications:
Model
SS-1G4WS33OC
Product

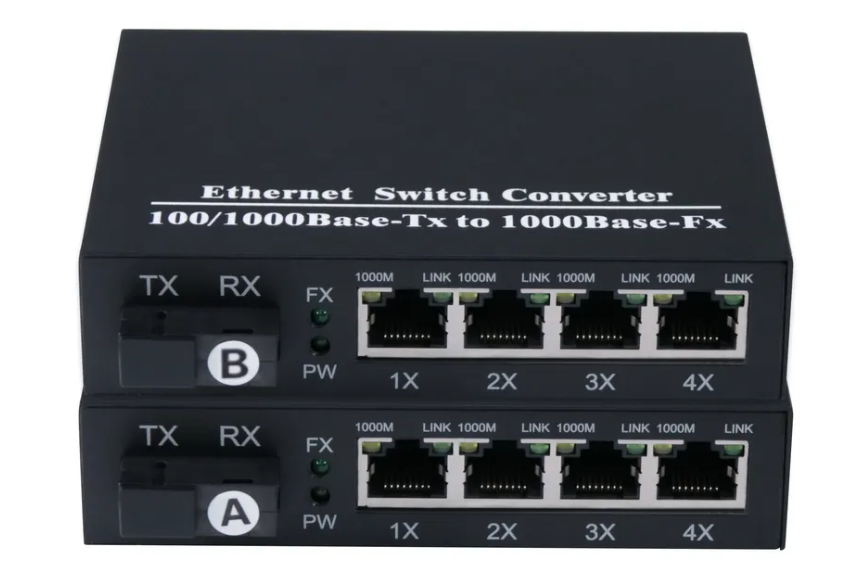

Full Gigabit 4+1 Switch
Fixed Port
4*10/100/1000Base--TX RJ45 port (Data)
1*1000M Optical Fiber Port(optional 1310/1550)
Network Protocol
IEEE802.3
IEEE802.3i 10BASE-T
IEEE802.3u100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE802.3x
IEEE 802.3z 1000BASE-X
Port Specification
100/1000BaseT(X) Auto
Transmission Mode
Store and Forward(full wirespeed)
Bandwidth
1.25Gbps
Packet Forwarding
12.96Mpps
MAC Address
2K
Buffer
2.5M
Transmission Distance
10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(150 meter)
1000BASE-TX : Cat6 or later UTP(150 meter)
Single mode single fiber(MAX 20KM)
Single mode double fiber (MAX 20KM)
Multiple mode double fiber(MAX 850M/2KM)
Optional 3-100KM Optical Fiber Module
Watt
≤10W;
LED Indicator
PW:Power LED
FX:(Optical fiber LED)
Port :(Green=10/100M LED+Orange=1000M LED)
Power
External power DC 5V 2A
Operating Temperature/Humidity
-15~+65°C;5%~90% RH Non coagulation
Storage Temperature/Humidity
-40~+75°C;5%~95% RH Non coagulation
Product size/Packing size(L*W*H)
178mm*98mm*25mm
230mm*125mm*55mm
N.W/G.W(kg)
0.45kg/0.62kg
Installation
Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level
3KV 8/20us;
IP30
Certificate
CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;MA;CNAS
Warranty
Whole device for 2 year
