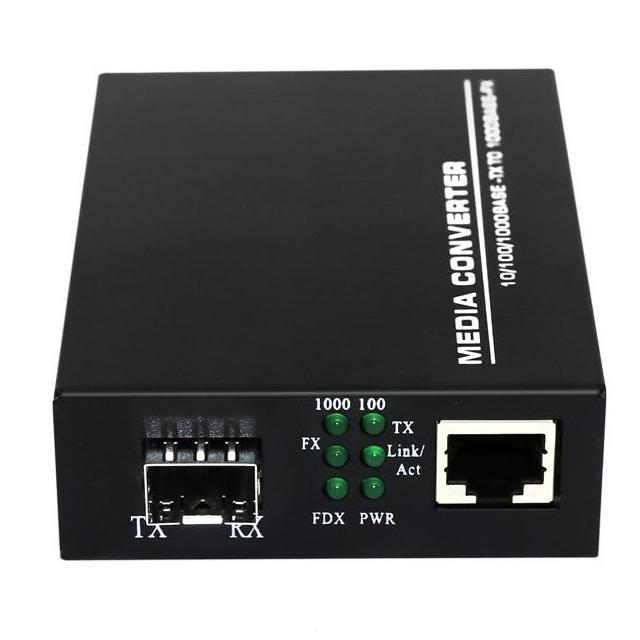

Model Number:SS-MC1000M24-SFP
Type:Fiber optic media converter, RJ45 to SFP
Data Rate:self-adaptive 10/100/1000M
Optic interface:1*SFP Slot
Ethernet interface:1*10/100/1000M RJ45 Port
Overall Power:<3W
Power supply:DC +5V/1A output
Temperature:0~50℃ Operating; -40~70℃ Storage
Fiber Connector:LC/SC
Certification:ROHS/ ISO9001 /CE
Technical Parameters
Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical SFP Media Converter
Number of Network Ports
1 channel
Number of Optical Ports
1 channel
10/100/1000M fiber RJ45 converter SFP media converter
Protocol supported
IEEE802.3/IEEE802.3U etc.
BER
< 1/1000000000
Optical Port Transmission Rate
1000Mbit/s
Operating Voltage
AC 100-220V or DC +5V
Overall Power
<3W
Network Ports
RJ45 port
Optical Specifications
Optical Port: LC/SC (Optional)
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Wavelength: Single-Mode: 1310/1550nm; Multi-Mode: 850nm/1310nm
Working temperature
0~50°C
Storage temperature
-40°C~70°C
Product size (L*W*H)
94mm*70mm*22mm
Packing size (L*W*H)
165mm*130mm*45mm
N.W/G.W(kg)
0.12kg/piece 0.255kg/piece
