*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant

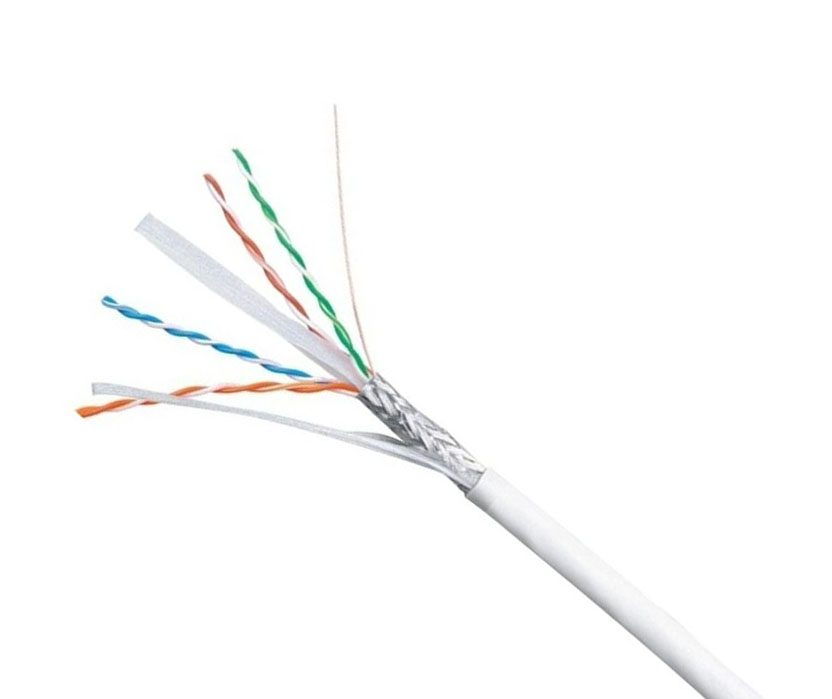

*Product Features:
•Performance Category = Cat 6
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 23
•Conductor:Bare Copper
•Length = 305M
•Jacket Color = Gray(Or Per Request)
Configuration Features:
· Shielded = Yes
· Shield Type = Overall Foil and Overall Copper Braid
· Cable Configuration = SF/UTP (Screened Braided and Foiled/Unshielded Twisted Pair)
Packaging Features:
· Packaging Method = Reel
◎ Applications:
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
*Performance Parameters:
| Category 6 SFTP 4-Pair Cable Performance Parameters: | ||||||||
|
FREQ (MHz) |
NEXT(dB/100m) Min.Value/ Typical Value/ Standard Value |
IL (dB/100m |
RL (dB) Min.Value/ Typical Value/ Standard Value |
ACR (dB/100m) Min.Value/ Typical Value/ Standard Value |
ELFEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSNEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSACR (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSELFEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
| 1 | 77.3/87.0/74.3 | 2 | 20.0/21.5/20.0 | 75.2/85.0/72.2 | 68.8/80.0/67.8 | 75.3/85.0/72.3 | 73.2/83.0/70.2 | 65.8/70.0/64.8 |
| 4 | 68.3/77.0/65.3 | 3.8 | 23.0/24.7/23.0 | 64.4/73.0/61.4 | 56.8/66.0/55.8 | 66.3/74.0/63.3 | 62.5/71.0/59.5 | 53.8/63.0/52.8 |
| 8 | 63.8/72.0/60.8 | 5.3 | 24.5/25.5/24.5 | 58.4/67.0/55.4 | 50.7/61.0/49.7 | 61.8/70.0/58.8 | 56.5/65.0/53.5 | 47.7/58.0/46.7 |
| 10 | 62.3/70.0/59.3 | 6 | 25.0/28.0/25.0 | 56.3/64.0/53.3 | 48.8/57.0/47.8 | 60.3/68.0/57.3 | 54.3/62.0/51.3 | 45.8/54.0/44.8 |
| 16 | 59.2/66.0/56.2 | 7.6 | 25.0/28.0/25.0 | 51.6/59.0/48.6 | 44.7/52.0/43.7 | 57.2/64.0/54.2 | 49.6/57.0/46.6 | 41.7/49.0/40.7 |
| 20 | 57.8/65.0/54.8 | 8.5 | 25.0/28.0/25.0 | 49.3/57.0/46.3 | 42.8/50.0/41.8 | 55.8/63.0/52.8 | 47.3/55.0/44.3 | 39.8/47.0/38.8 |
| 25 | 56.3/63.0/53.3 | 9.5 | 24.3/27.0/24.3 | 46.8/5 4.0/43.8 | 40.8/47.0/39.8 | 54.3/61.0/51.3 | 44.8/52.0/41.8 | 37.8/44.0/36.8 |
| 31.25 | 54.9/61.0/51.9 | 10.7 | 23.6/26.5/23.6 | 44.1/51.0/41.1 | 38.9/45.0/37.9 | 52.9/59.0/49.9 | 42.1/49.0/39.1 | 35.9/42.0/34.9 |
| 62.5 | 50.4/57.0/47.4 | 15.4 | 21.5/24.6/21.5 | 34.9/42.0/31.9 | 32.9/38.0/31.9 | 48.4/55.0/45.4 | 32.9/40.0/29.9 | 29.9/35.0/28.9 |
| 100 | 47.3/53.0/44.3 | 19.8 | 20.1/23.7/20.1 | 27.4/33.0/24.4 | 28.8/34.0/27.8 | 45.3/51.0/42.3 | 25.4/31.0/22.4 | 25.8/31.0/24.8 |
| 200 | 42.8/48.0/39.8 | 29 | 18.0/22.2/18.0 | 13.6/21.0/10.6 | 22.8/27.0/21.8 | 40.8/46.0/37.8 | 11.6/19.0/8.6 | 19.8/24.0/18.8 |
| 250 | 41.3/46.0/38.3 | 32.8 | 17.3/21.6/17.3 | 8.3/14.0/5.3 | 20.8/24.0/19.8 | 39.3/44.0/36.3 | 6.3/12.0/3.3 | 17.8/21.0/16.8 |
| 300 | 37.1/45.0/37.1 | 36.4 | 16.8/20.7/16.8 | 0.5/11.0/0.5 | 18.3/23.0/18.3 | 35.1/43.0/35.1 | 0.111111111 | 15.3/20.0/15.3 |
| 350 | 36.1/44.0/36.1 | 39.8 | 16.3/20.3/16.3 | 0.151515152 | 16.9/21.0/16.9 | 34.1/42.0/34.1 | 0.217391304 | 13.9/18.0/13.9 |
