Product Details

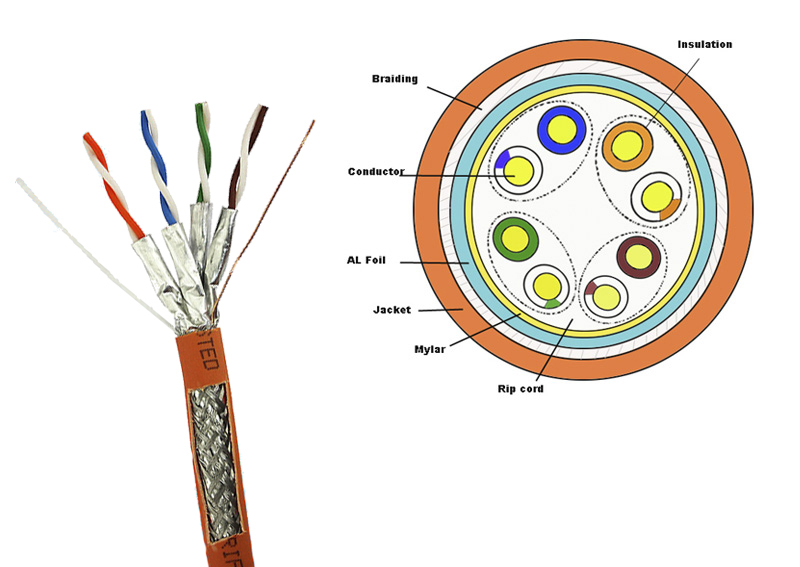

CAT7 (1000MHz), 4-Pair, S/FTP shielded, Premise Horizontal Cable, 23 AWG solid bare copper conductors, Foam Polyolefin insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket.
Features and Benefits
·4 individually shielded twisted pairs ·23AWG solid bare copper conductor insulated in polyethylene
·Tinned copper braided screen
·Low smoke zero halogen (LSZH) jacket
·Operating temperature -20°C to +60°C
·Complies with ISO/IEC 11801 2nd edition and prEN 50288-3-1
Applications
This Cat7 cable is used for horizontal and building backbone. Supports current and future Cat6a and Cat7 appplications such as: 10 gigabit ethernet (10GBase-T), gigabit ethernet (1000Base-T), 100 Base-T, 10 Base-T, FDDI and ATM.
Standards
ISO/IEC 11803; EN 50173; TIA/EIA 568-A-5 Enhanced
| Attribute | Value |
|---|---|
| Shield Type | S/FTP |
| Sheath Colour | Grey |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Connector Type | Unterminated/Unterminated |
| Terminated/Unterminated | Unterminated |
| Length | 500m |
| Outer Sheath Material | LSZH |
| Outer Diameter | 7.7mm |
| Core Strands | 1/23 |
