*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
Product Type Features:
•Performance Category = Cat 6
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 23
•Conductor:Bare Copper
•Length = 305M
•Jacket Color = Blue(Or Per Request)
Configuration Features:
· Shielded = Yes
· Number of Twisted Pairs = 4
· Shield Type = Overall Foil

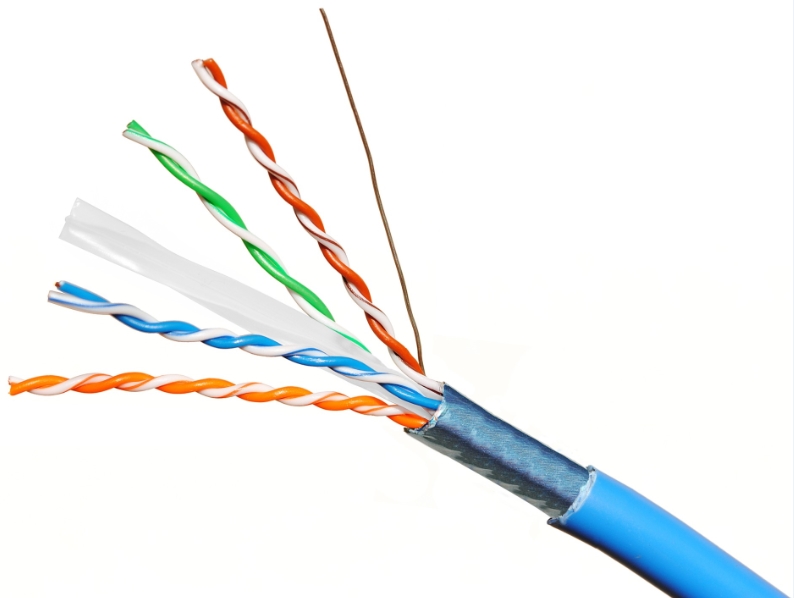

· Cable Configuration = F/UTP (Foiled/Unshielded Twisted Pair)
Environmental:
· Operating Temperature (°C [°F]) = -20 – +75 [-4 – +167]
Packaging Features:
· Packaging Method = Reel
◎ Applications:
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
*Performance Parameters:
| CATEGORY 6 FTP 4-PAIR CABLE: | ||||||||
| FREQUENCY | RL | SRL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
| (MHZ) | (DB) | (DB) | (DB/100M) | (DB/100M) | (MHZ) | (DB/100M) | (DB/100M) | (NS/100M) |
| 0.772 | 20 | 28 | 2 | 67.8 | 65.5 | 68.2 | 65 | 550 |
| 1 | 20 | 28 | 2 | 65.1 | 62.5 | 64.3 | 62 | 553 |
| 4 | 23 | 28 | 4 | 57.2 | 52.7 | 53.1 | 52 | 552 |
| 10 | 25 | 28 | 6.3 | 50.9 | 47.3 | 44.2 | 43 | 545 |
| 16 | 25 | 28 | 8 | 48.2 | 44.9 | 29.8 | 40 | 538 |
| 25 | 23.6 | 25 | 10.7 | 44.1 | 42.1 | 36.4 | 35 | 534 |
| 62.5 | 20.1 | 27 | 16.4 | 39.3 | 37.9 | 29.5 | 29 | 532 |
| 100 | 18.8 | 26.5 | 21.4 | 36.5 | 32.8 | 26.2 | 27.6 | 520 |
| 200 | 17.2 | 24.9 | 19.2 | 34.9 | 30.5 | 23.4 | 25.3 | 517 |
| 250 | 16.3 | 22.4 | 18.7 | 32.8 | 28.6 | 22.6 | 23.7 | 515 |
