*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
*Product Features:
•Performance Category = Cat 5e
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 24
•Conductor:Bare Copper
•Length = 305M
•Jacket Color = White(Or Per Request)
Configuration Features:
· Shielded = Yes
· Shield Type = Overall Foil and Overall Copper Braid

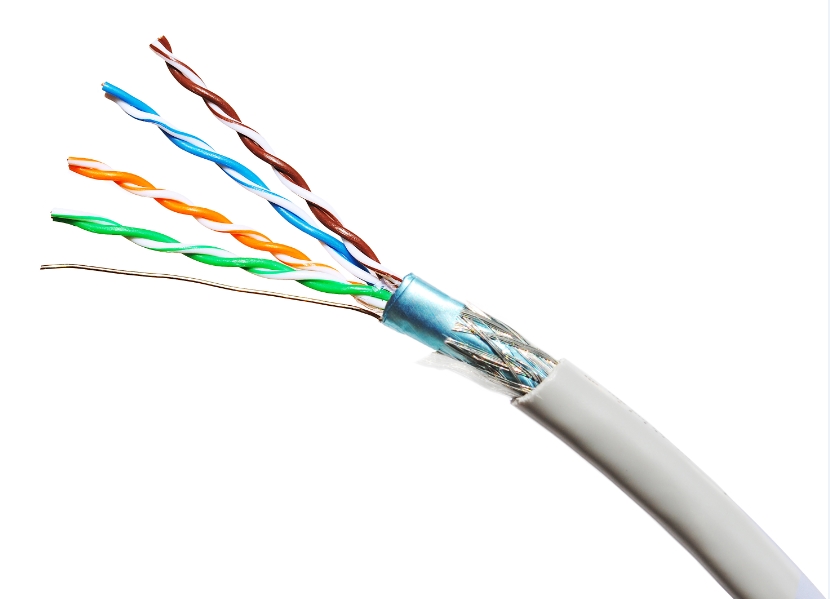

· Cable Configuration = SF/UTP (Screened Braided and Foiled/Unshielded Twisted Pair)
Packaging Features:
· Packaging Method = Reel
*Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
• Other high-performance applications
▫ Outside Plant
▫ Direct Burial
|
CATEGORY 5E SFTP 4-PAIR CABLE Performance Parameters: |
||||||||
|
FREQUENCY |
RL |
SRL |
ATTEN |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
DELAY |
|
(MHZ) |
(DB) |
(DB) |
(DB/100M) |
(DB/100M) |
(MHZ) |
(DB/100M) |
(DB/100M) |
(NS/100M) |
|
1 |
20 |
28 |
2 |
65.1 |
62.5 |
64.3 |
62 |
＜45.0 |
|
4 |
23 |
28 |
4 |
57.2 |
52.7 |
53.1 |
52 |
＜45.0 |
|
8 |
24.5 |
28 |
5.5 |
52.3 |
49.1 |
45.9 |
47 |
＜45.0 |
|
10 |
25 |
28 |
6.3 |
50.9 |
47.3 |
44.2 |
43 |
＜45.0 |
|
16 |
25 |
28 |
8 |
48.2 |
44.9 |
29.8 |
40 |
＜45.0 |
|
20 |
24.3 |
29 |
9.5 |
46.3 |
42.7 |
38.6 |
39 |
＜45.0 |
|
25 |
23.6 |
25 |
10.7 |
44.1 |
42.1 |
36.4 |
35 |
＜45.0 |
|
31.25 |
21.5 |
26 |
11.2 |
42.9 |
38.7 |
35.1 |
32 |
＜45.0 |
|
62.5 |
20.1 |
27 |
16.4 |
39.3 |
37.9 |
29.5 |
29 |
＜45.0 |
|
100 |
18.8 |
26.5 |
21.4 |
36.5 |
32.8 |
26.2 |
27.6 |
＜45.0 |
