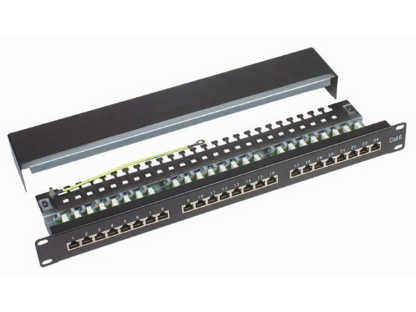

FTP 24 Port Patch Panel
Description：CAT6 Type Krone IDC
MAIN Electric Parameter:
CONTACT RESISTANCE: <20m ohms
INSULATION RESISTANCE : >500M ohms
DIELECTRIC STRENGHT : DC1000V(AC700V)No punctured and overflash phenomenon whithin one minute
Return loss : 100MHz , >8dB
Insertion loss : 100MHz , >35.9dB
Next loss : 100MHz , > 33.1dB
Attenuation: 100MHz , < 555ns
Main material: PC、Phosphor bronze
Pin:30-50”U”nickel plating inner side,surface golden plating
Work temperature:-10℃-60℃
Storage temperature:-40℃-70℃
MAIN mechanic Parameter：service life ：more than 750 times mating cycles
contact time：》250 times
allow cable diameter: 0.57 0.01/-0.03MM
