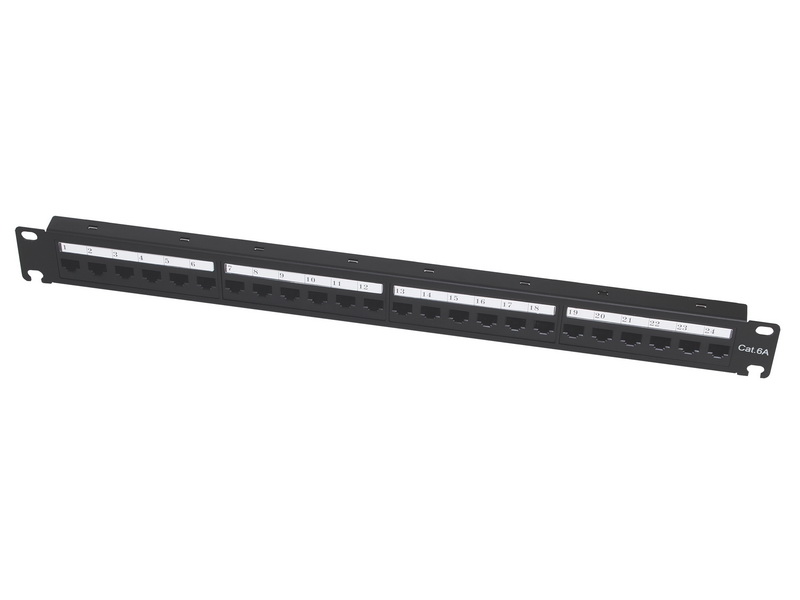

●CAT6A FTP 24Port Patch Panel
●Meet or exceed the current T568A and T568B standard.
●Termination: LSA IDC
●Fitting for 22AWG/23AWG/24AWG/26 AWG solid wires
●Punching duration: 250 times
●Inserting duration: 750 times
●Insulation Resistance: 500M-ohm
●Dielectric Withstand Voltage: 1000V AC RMS, 60Hz 1min
●IDC contact material：phosphor bronze with tin plating over nickel;
●Contact material: phosphor bronze with gold plating over nickel;
●Panel frame: Black or Ivory electrostatic powder-coated steel;
●Housing material: ABS or PC, UL94-V0 or UL94-V2
●Packing: 10pcs/x 53.5*38*28.5
