Description

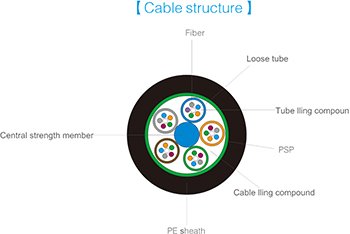

The bers, 250μm，are positioned in a loose tube made of a high modulus plastic. The tubes are Iled with a water-resistant Ring compound.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high ber count, locates in the center of core as a metallic strength member. Tubes (and Hers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core, witch is Iled with the Ring compound to protect it from water ingress.Then，the cable is
completed with a PE sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube Iling compound ensure a critical protection of ber
Special designed compact structure is good at preventing loose
tubes from shrinking
Crush resistance and exibility
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensurethe cable watertight:
1.Steel wire used as the central strength member
2.Loose tube Iling compound
3.100% cable core Iling
4.PSP enhancing moisture-proof

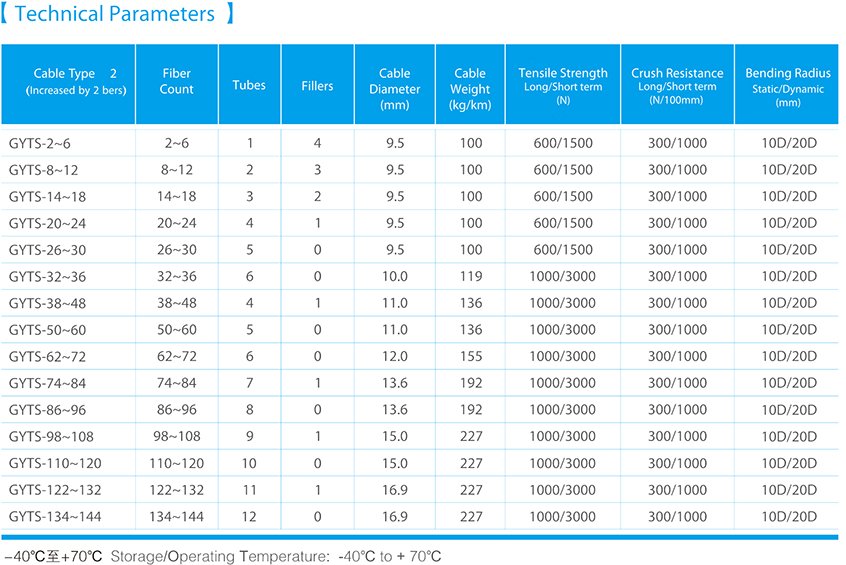

Parameters
