*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
*Product Features
•Performance Category = Cat 5e
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 24
•Conductor:Bare Copper
•Length = 305M
•Jacket = PE(Black)
•Insulation=HDPE
•UV Resistant
•Cable Configuration = UTP (Unshielded Twisted Pair)
Environmental:
· Operating Temperature (°C [°F]) = -20 – +60 [-4 – +167]
Packaging Features:
· Packaging Method = Pull Box
*Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
• Other high-performance applications
▫ Outside Plant
▫ Direct Burial
*Packaging Features:•Packaging Method = Pull Box/Reel Box
*Performance Parameters:

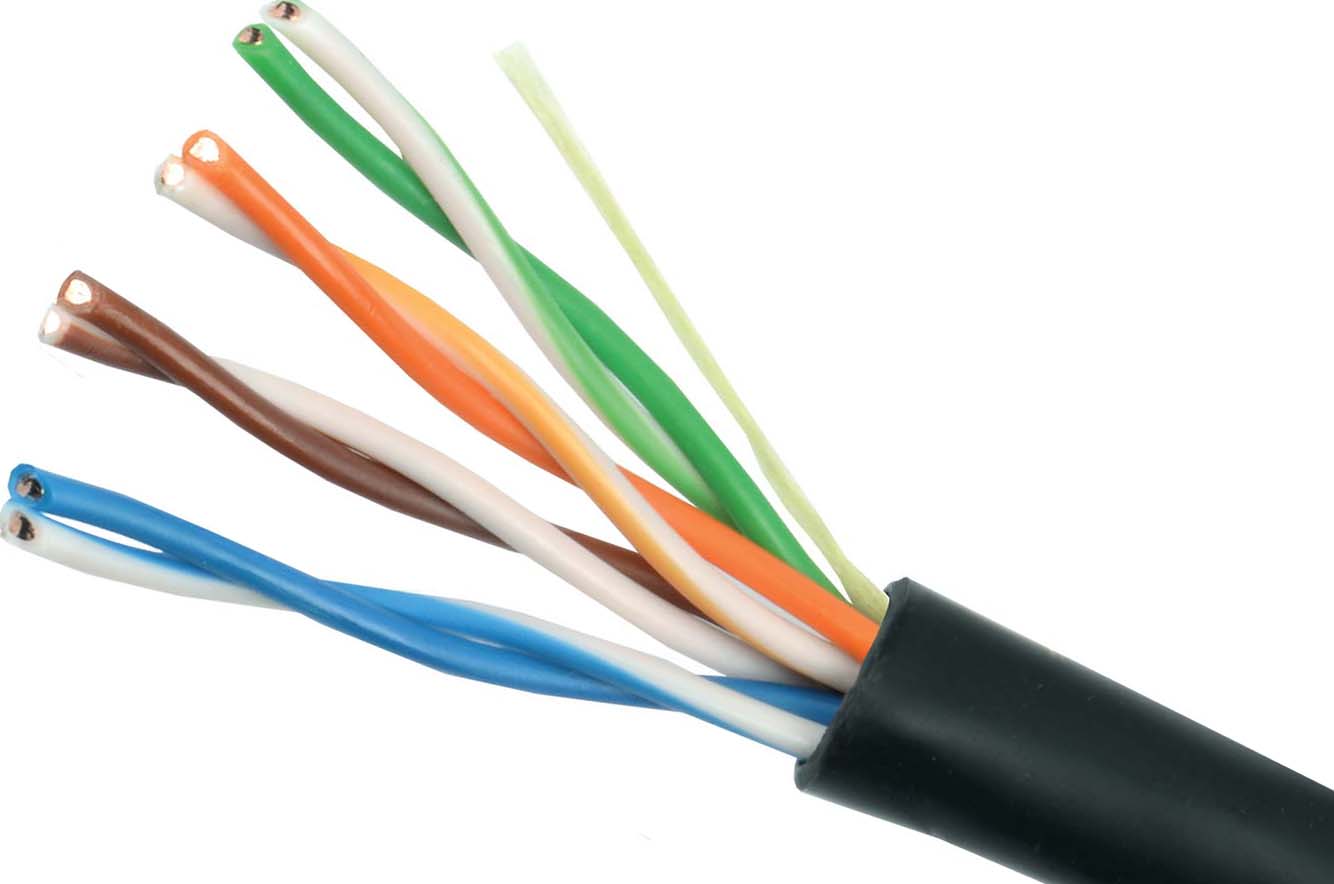

OUTDOOR CATEGORY 5E UTP 4-PAIR CABLE Performance Parameters:
FREQUENCY
Impedance
RL
ATTEN
NEXT
PSNEXT
ELFEXT
PSELFEXT
DELAY
(MHZ)
(Ω)
(DB)
(DB/100M)
(DB/100M)
(MHZ)
(DB/100M)
(DB/100M)
(NS/100M)
0.772
100±15
19.4
1.8
64.9
61.8
63.7
61.5
＜45.0
1
20
2
65.1
62.5
64.3
62
＜45.0
4
23
4
57.2
52.7
53.1
52
＜45.0
8
24.5
5.5
52.3
49.1
45.9
47
＜45.0
10
25
6.3
50.9
47.3
44.2
43
＜45.0
16
25
8
48.2
44.9
29.8
40
＜45.0
20
26.5
9.5
46.3
42.7
38.6
39
＜45.0
25
25.8
10.7
44.1
42.1
36.4
35
＜45.0
31.25
26
11.2
42.9
38.7
35.1
32
＜45.0
62.5
27
16.4
39.3
37.9
29.5
29
＜45.0
100
26.5
21.4
36.5
32.8
26.2
27.6
＜45.0
