*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2 Category 6A
•RoHS/CE compliant

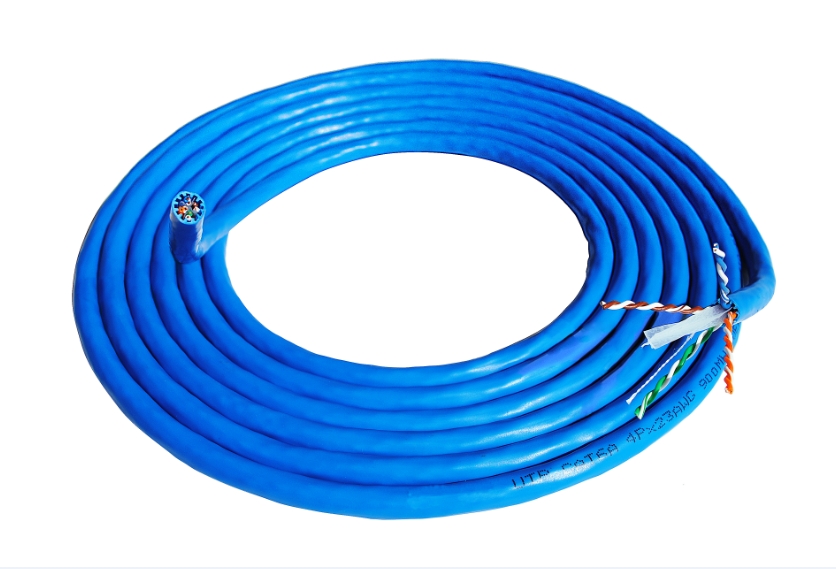

Product Type Features:
•Performance Category = Cat 6a
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 23
•Conductor:Bare Copper
•Length = 305M
•Jacket Color = Blue(Or Per Request)

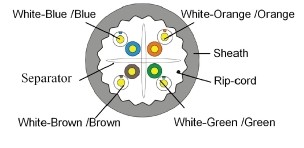

Configuration Features:
· Shielded = No
· Number of Twisted Pairs = 4
Environmental:
· Operating Temperature (°C [°F]) = -20 – +75 [-4 – +167]
Packaging Features:
· Packaging Method = Reel
Applications:
• 10/100/1000Base-T
• 100Base-VG
• 155 Mbps and 622-Mpbs ATM
• Other high-performance applications
▫ Backbone
▫ Floor-to-floor backbone
▫ Horizontal cabling to desktop
*Performance Parameters:
Category 6a UTP 4-Pair Cable Performance Parameters:
FREQUENCY
RL
ATTEN
NEXT
PSNEXT
ELFEXT
PSELFEXT
DELAY
(MHZ)
(DB)
(DB/100M)
(DB/100M)
(MHZ)
(DB/100M)
(DB/100M)
(NS/100M)
1
20
3.31
65.1
62.5
64.3
71.7
562
4
23
4
57.2
52.7
53.1
68.2
557
8
23.7
5.2
53.1
49.5
47.8
67.2
550
10
24.5
5.5
52.3
49.1
45.9
67.1
552
16
25
7.33
50.9
47.3
44.2
65.2
549
20
25
8
48.2
44.9
29.8
57.3
542.3
25
24.3
9.5
46.3
42.7
38.6
54.1
540.7
31.3
23.6
10.7
44.1
42.1
36.4
51.9
539.1
62.5
21.5
16.21
42.9
38.7
35.1
48.9
537.9
100
20.1
18.97
39.3
37.9
29.5
45.3
537.8
200
18.8
29.32
36.5
32.8
26.2
41
536.2
250
18
43.7
33.1
30.1
24.3
37.2
536
300
16.2
41.2
31.3
29.9
23.9
35.6
535
400
15.4
38.3
30.9
29.8
22.1
34.7
536
500
14.7
33.7
29.8
28.9
20.9
33.2
535
