TUV Certified PV Solar Cable H1Z2Z2-K
Model:
SSPV1-F / H1Z2Z2-K

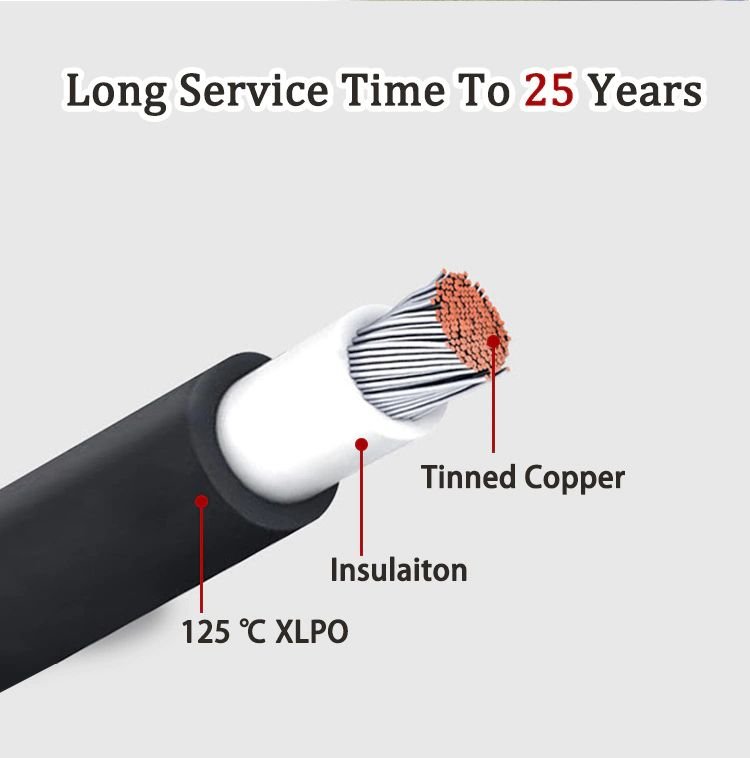

Conductor:
Class 5 (flexible) tinned copper
Insulation:
XLPO
Sheath:
XLPO
Rated Voltage:
DC 1.5kV
Cross-section:
2.5/4/6/10 mm²
Max. Service Temperature:
125℃
Max. Short-circuit Temperature:
250ºC (max.5s)
Min. service temperature:
-40℃
Installation Conditions:
Open air; Buried
Estimated Lifetime:
30 years
Standard:
EN 50618 / 2PfG 1169
Approvals:
TUV, IEC, CCC
Packaging:

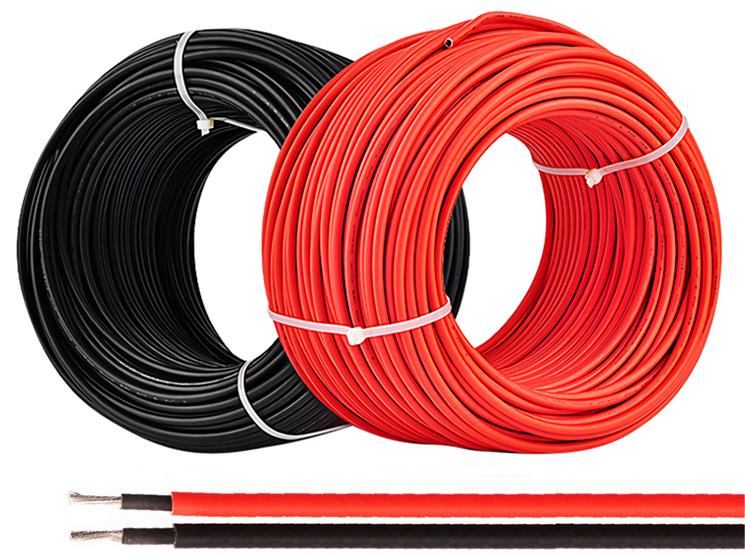

Available in rolls (100m) and reels
Color:
Red / Black
Different from other underground PVC or XLPE power cables laid indoor or in a protected environment, solar cables are specifically used in outdoor photovoltaic energy generation system, which requires it must possess the following performances:
Withstanding large temperature range
Solar cables are able to adapt in a relatively high and low temperature circumstance in different tough areas
Pvc insulated cable temperature: -25℃~70℃
Xlpe insulated cable temperature: -20℃~90℃
PV solar cable temperature: -40℃~125℃
Humidity and water resistance
Humidity has the direct influence to the cable aging property. Solar cables can be use in some humid environments such as wet areas and pond as its insulation and sheath materials can withstand 85% humidity
UV resistance
Solar cables are able to ensure the normal working even it is laid exposed in desert areas with solar ultraviolet radiation intensity
Acid and alkali resistance

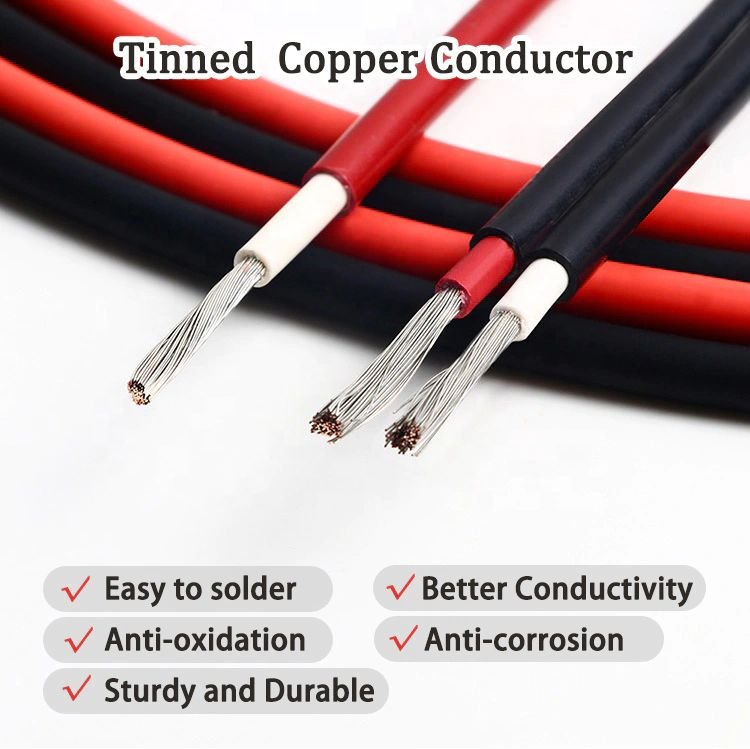

PV cables can be found in seaside and tidal flat areas with high salinity. Because its tinned copper conductor has a certain oxidation resistance and corrosion resistance, its protective sheath passes salt spray test according to GB/T2423.17-2008 standard and acid-alkali test according to GB/T 2951.12-2008 requirement
Ozone resistance
Photovoltaic cables are possible used in high ozone areas where have a certain corrosion effect on the cable sheath and accelerates aging. Solar cables pass ozone resistance test according to GB/T2951.21-2008 standard which requires no crack in 0.025-0.030% ozone concentration within 24 hours. Thus solar cables can guarantee normal operation under high ozone circumstance.
