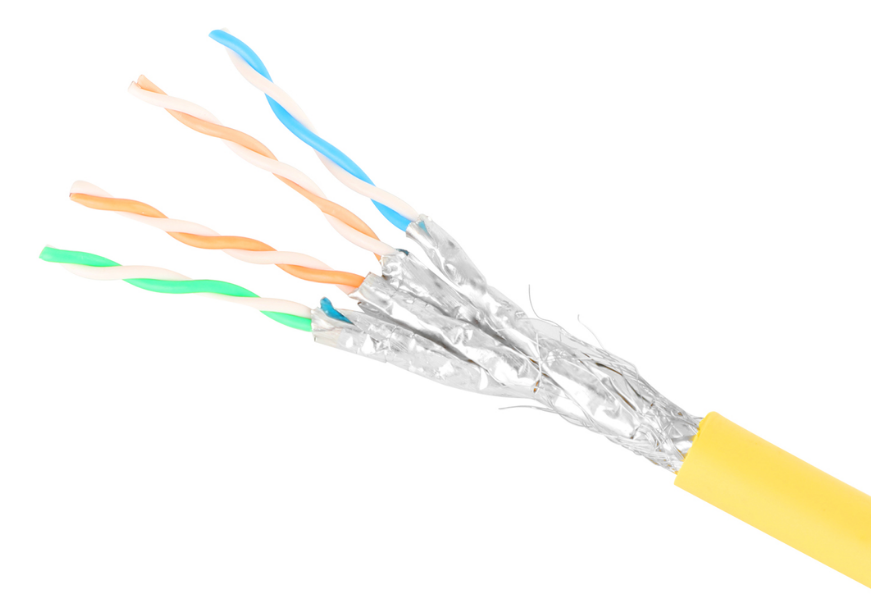

Cat8 SSTP Cable

Category:CAT8


*Standard Compliance:

TIA-568.2-D ISO/IEC11801 & IEC61156-9

RoHS/CE compliant,UL CMP/CM/CMX


*Product Type Features:
#Data transmission speed 40 Gigabits and bandwidth up to 2000Mhz.perfectly suitable for Gaming, Cloud data Server and other smart home & office products that require high speed & high performance network.

#Fluke Test Passed

•Performance Category = Cat 8
•Number of Twisted Pairs = 4

•Conductor:Bare Copper

•Wire/Cable Size (AWG) = 22

•Insulation:Foamed PE

•Jacket:LSZH

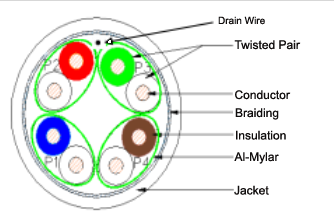

•Cable Configuration = SSTP


*Environmental:

· Operating Temperature = -15°C ~+60°C

· Installation Temperature=0°C ~ +50°C


*Packaging Features:

Wooden/plastic reel.


*Applications: 10/100/1000 Base -T, 40G, ATM & Token Ring

 Perfectly suitable for PC, computer servers, Hubs, Smart TV, Routers, DSL, Cable Modems, PS3, PS4, X-box, patch panels, NAS, VoIp phone other high performance networking applications.

*Performance Parameters:

Frequency (MHz) Insertion loss NEXT NEXT PS ACR-F ACR-F PS Return Loss Propagation Delay Skew
1 2 105.4 102.4 100.6 97.6 20 171 13.5
4 2 96.4 93.4 88.6 85.6 23 166 13.5
8 2 91.9 88.9 82.5 79.5 24.5 164 13.5
10 2 90.4 87.4 80.6 77.6 25 163 13.5
16 2.2 87.3 84.3 76.5 73.5 25 163 13.5
20 2.5 85.9 82.9 74.6 71.6 25 162 13.5
25 2.8 84.4 81.4 72.6 69.6 25 162 13.5
31.25 3.1 83 80 70.7 67.7 25 162 13.5
62.5 4.4 78.5 75.5 64.7 61.7 23.6 161 13.5
100 5.6 75.4 72.4 60.6 57.6 22.2 161 13.5
200 7.9 70.9 67.9 54.6 51.6 20.1 161 13.5
250 8.9 69.4 66.4 52.6 49.6 19.4 161 13.5
300 9.8 68.2 65.2 51.1 48.1 18.9 161 13.5
400 11.4 66.4 63.4 48.6 45.6 18 161 13.5
500 12.8 64.9 61.9 46.6 43.6 17.3 160 13.5
600 14.1 63.7 60.7 45 42 16.8 160 13.5
1000 18.6 60.4 57.4 40.6 37.6 15.2 160 13.5
1500 23.2 57.8 54.8 37.1 34.1 14 160 13.5
2000 27.2 55.9 52.9 34.6 31.6 13.1 160 13.5
