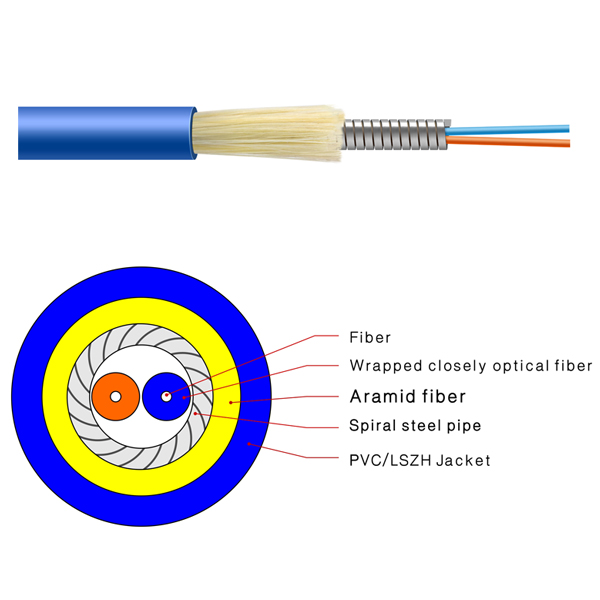

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.
·2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.。
·Flame retardant outer sheath provide good safety.
·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·Small installation space cabling
·GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
|
|
|
|
|
|
|
|
|
|
GJSFJV |
2 |
0.6 |
3.2 |
15 |
300/750 |
200/1000 |
20D/10D |
|
GJSFJV |
2 |
0.9 |
4.0 |
28 |
300/750 |
200/1000 |
20D/10D |
Storage/Operating Temperature : -20℃ to + 60℃
