*Standard Compliance:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
*Product Features

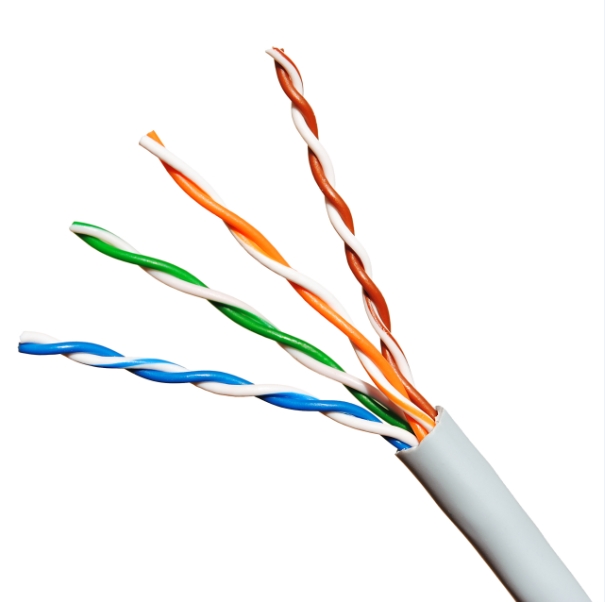

•Performance Category = Cat 5e
•Number of Twisted Pairs = 4
•Wire/Cable Size (AWG) = 24
•Conductor:Bare Copper
•Length = 305M
•Jacket Color = Gray(or Per request)
•Cable Configuration = UTP (Unshielded Twisted Pair)
*Environmental:•Operating Temperature (°C [°F]) = -20 – +60 [-4 – +140]
*Packaging Features:•Packaging Method = Pull Box
*Applications
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
*Performance Parameters:
| CATEGORY 5E UTP 4-PAIR CABLE Performance Parameters: | ||||||||
| FREQUENCY | RL | SRL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
| (MHZ) | (DB) | (DB) | (DB/100M) | (DB/100M) | (MHZ) | (DB/100M) | (DB/100M) | (NS/100M) |
| 0.772 | 16.7 | 25.2 | 2 | 68.9 | 67.5 | 68 | 69.2 | 570 |
| 1 | 18 | 28 | 2 | 66.2 | 64.9 | 65.4 | 65.4 | 560 |
| 4 | 19.8 | 28 | 4 | 57.9 | 57.2 | 53.7 | 53.7 | 548 |
| 8 | 20.8 | 27 | 5.2 | 56.2 | 55 | 49 | 50.3 | 545 |
| 10 | 22 | 25 | 6.2 | 51.9 | 48.3 | 44.7 | 44.7 | 544 |
| 16 | 22 | 26 | 7.9 | 49.5 | 46.3 | 42.5 | 42.5 | 542 |
| 20 | 22 | 26.2 | 8.6 | 47.2 | 44.5 | 40.2 | 39.8 | 540 |
| 25 | 20.2 | 26.5 | 9.7 | 45.9 | 42.9 | 37.3 | 37.3 | 539 |
| 31.3 | 19.6 | 25.8 | 16.5 | 41.2 | 38.2 | 30.9 | 30.9 | 536 |
| 62.5 | 18 | 25.7 | 21.2 | 38.4 | 34.8 | 25.6 | 25.6 | 535 |
| 100 | 17 | 22.4 | 18.7 | 32.8 | 28.6 | 22.6 | 23.7 | 533 |
